Turning Tools

Turning Holder

Small Tools

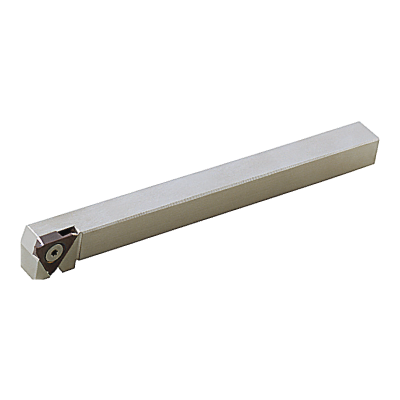

GT Holder 00°

GTAH

  • Type1

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D Model(DXF) 3D Detail Model(STP,STL) 3D Light Model(STP,STL) Product List(XLSX)
EDP Order Number Type Stock UST HAND H B LF HF HBH HBL S10 CDX WF2 B2 ALP CICT Applicable_Inserts
273906 GTAHR0808-20 Type 1 M Right Hand 8 8 120 8 5 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273914 GTAHR0808-20S Type 1 M Right Hand 8 8 80 8 5 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273922 GTAHR1010-20 Type 1 M Right Hand 10 10 120 10 3 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
264436 GTAHR1010-20S Type 1 M Right Hand 10 10 80 10 3 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273931 GTAHR1212-20 Type 1 M Right Hand 12 12 120 12 1 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273949 GTAHR1212-20S Type 1 M Right Hand 12 12 80 12 1 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273957 GTAHR1616-20 Type 1 M Right Hand 16 16 120 16 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
274001 GTBHR1010-30 Type 1 M Right Hand 10 10 120 10 3 15 13.4 3 0 2 ° -6 ° 1 GTBT〇〇〇〇,GTCT〇〇〇〇
274010 GTBHR1010-30S Type 1 M Right Hand 10 10 80 10 3 15 13.4 3 0 2 ° -6 ° 1 GTBT〇〇〇〇,GTCT〇〇〇〇
274028 GTBHR1212-30 Type 1 M Right Hand 12 12 120 12 1 15 13.4 3 0 2 ° -6 ° 1 GTBT〇〇〇〇,GTCT〇〇〇〇
274036 GTBHR1616-30 Type 1 M Right Hand 16 16 120 16 3 0 2 ° -6 ° 1 GTBT〇〇〇〇,GTCT〇〇〇〇
274061 GTCHR1010-30 Type 1 M Right Hand 10 10 120 10 3 15 13.4 3 0 2 ° -6 ° 1 GTCT〇〇〇〇
274079 GTCHR1010-30S Type 1 M Right Hand 10 10 80 10 3 15 13.4 3 0 2 ° -6 ° 1 GTCT〇〇〇〇
273834 GTAHL0808-20 Type 1 M Left Hand 8 8 120 8 5 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273842 GTAHL0808-20S Type 1 M Left Hand 8 8 80 8 5 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273851 GTAHL1010-20 Type 1 M Left Hand 10 10 120 10 3 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273869 GTAHL1010-20S Type 1 M Left Hand 10 10 80 10 3 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273877 GTAHL1212-20 Type 1 M Left Hand 12 12 120 12 1 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273885 GTAHL1212-20S Type 1 M Left Hand 12 12 80 12 1 15 12.9 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇
273893 GTAHL1616-20 Type 1 M Left Hand 16 16 120 16 2 0 2 ° -6 ° 1 GTAT〇〇〇〇,GTBT〇〇〇〇,GTCT〇〇〇〇

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
