Turning Tools

Turning Holder

External Grooving_Cutting Off

MGH

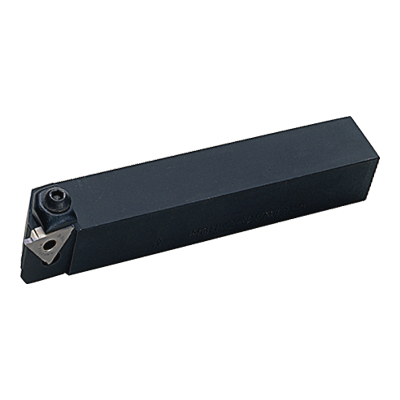

MGH （External grooving）

  • Type1

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)
EDP Order Number Type Stock UST HAND H B LF HF WF CDX GAMP ALP CSP CICT
115373 MGHR2020K3315 Type 1 M Right Hand 20 20 125 20 20.2 1.2 5 ° -6 ° - 1
115374 MGHR2020K3323 Type 1 M Right Hand 20 20 125 20 20.2 3 5 ° -6 ° - 1
115949 MGHR2020K4315 Type 1 M Right Hand 20 20 125 20 20.2 1.2 5 ° -6 ° - 1
115957 MGHR2020K4323 Type 1 M Right Hand 20 20 125 20 20.2 4.5 5 ° -6 ° - 1
116965 MGHR2020K4333 Type 1 M Right Hand 20 20 125 25 20.2 4.5 5 ° -6 ° - 1
450343 MGHR2525M3315 Type 1 M Right Hand 25 25 150 25 25.2 1.2 5 ° -6 ° - 1
182844 MGHR2525M3323 Type 1 M Right Hand 25 25 150 25 25.2 3 5 ° -6 ° - 1
10071335 MGHR2525M3333 Type 1 M Right Hand 25 25 150 25 25.2 3 5 ° -6 ° - 1
128194 MGHR2525M4315 Type 1 M Right Hand 25 25 150 25 25.2 1.2 5 ° -6 ° - 1
113670 MGHR2525M4323 Type 1 M Right Hand 25 25 150 25 25.2 4.5 5 ° -6 ° - 1
182852 MGHR2525M4333 Type 1 M Right Hand 25 25 150 25 25.2 4.5 5 ° -6 ° - 1
372226 MGHR2525M4447 Type 1 M Right Hand 25 25 150 25 25.2 4.5 5 ° -6 ° - 1
115405 MGHL2020K3315 Type 1 M Left Hand 20 20 125 20 20.2 1.2 5 ° -6 ° - 1
10071274 MGHL2020K3323 Type 1 M Left Hand 20 20 125 20 20.2 3 5 ° -6 ° - 1
115965 MGHL2020K4315 Type 1 M Left Hand 20 20 125 20 20.2 1.2 5 ° -6 ° - 1
10071281 MGHL2020K4323 Type 1 M Left Hand 20 20 125 20 20.2 4.5 5 ° -6 ° - 1
10071298 MGHL2020K4333 Type 1 M Left Hand 20 20 125 20 20.2 4.5 5 ° -6 ° - 1
102926 MGHL2525M3315 Type 1 M Left Hand 25 25 150 25 25.2 1.2 5 ° -6 ° - 1
10071304 MGHL2525M3323 Type 1 M Left Hand 25 25 150 25 25.2 3 5 ° -6 ° - 1
10071311 MGHL2525M3333 Type 1 M Left Hand 25 25 150 25 25.2 3 5 ° -6 ° - 1

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
