Turning Tools

Turning Holder

Boring

FSCLC_P_E

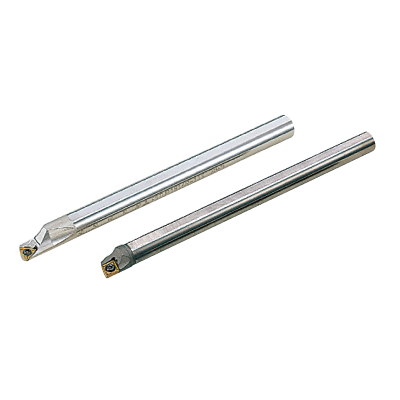

FSCLC_P_E （Carbide shank with coolant hole）

  • Type1
  • Boring Bars
  • Carbide shank with coolant hole

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D Model(DXF) 3D Detail Model(STP,STL) 3D Light Model(STP,STL) Product List(XLSX) Cutting Condition
EDP Order Number Type Stock UST Hand KAPR DMIN DCONMS LF LDRED WF H GAMF GAMP CSP CICT Applicable_Inserts
486063 FSCLC1008R-06E Type 1 M Right Hand 95 ° 10 8 140 13.8 5 7.2 12 ° 1 ° ◯ 1 CC〇B0602〇〇,CC〇H0602〇〇,CC〇T0602〇〇,CC〇W0602〇〇
346749 FSCLP1210R-08E Type 1 M Right Hand 95 ° 12 10 160 16 6 9 5 ° 5 ° ◯ 1 CP〇B0802〇〇,CPMH0802〇〇,CP〇T0802〇〇,CPMX0802〇〇
496149 FSCLP1412R-08E Type 1 M Right Hand 95 ° 14 12 180 17.8 7 11 4 ° 5 ° ◯ 1 CP〇B0802〇〇,CPMH0802〇〇,CP〇T0802〇〇,CPMX0802〇〇
553078 FSCLP1816R-09E Type 1 M Right Hand 95 ° 18 16 220 21.8 9 15 3.5 ° 5 ° ◯ 1 CP〇B0903〇〇,CPMH0903〇〇,CP〇T0903〇〇,CPMX0903〇〇
448737 FSCLP2220R-09E Type 1 M Right Hand 95 ° 22 20 250 24 11 19 2 ° 5 ° ◯ 1 CP〇B0903〇〇,CPMH0903〇〇,CP〇T0903〇〇,CPMX0903〇〇
601172 FSCLC1008L-06E Type 1 M Left Hand 95 ° 10 8 140 13.8 5 7.2 12 ° 1 ° ◯ 1 CC〇B0602〇〇,CC〇H0602〇〇,CC〇T0602〇〇,CC〇W0602〇〇
508728 FSCLP1210L-08E Type 1 M Left Hand 95 ° 12 10 160 16 6 9 5 ° 5 ° ◯ 1 CP〇B0802〇〇,CPMH0802〇〇,CP〇T0802〇〇,CPMX0802〇〇
553043 FSCLP1412L-08E Type 1 M Left Hand 95 ° 14 12 180 17.8 7 11 4 ° 5 ° ◯ 1 CP〇B0802〇〇,CPMH0802〇〇,CP〇T0802〇〇,CPMX0802〇〇
553060 FSCLP1816L-09E Type 1 M Left Hand 95 ° 18 16 220 21.8 9 15 3.5 ° 5 ° ◯ 1 CP〇B0903〇〇,CPMH0903〇〇,CP〇T0903〇〇,CPMX0903〇〇
553094 FSCLP2220L-09E Type 1 M Left Hand 95 ° 22 20 250 24 11 19 2 ° 5 ° ◯ 1 CP〇B0903〇〇,CPMH0903〇〇,CP〇T0903〇〇,CPMX0903〇〇

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.

About 'Function Icons' and 'Download Icons'

Add products to 'Favourites'
YouTube link
Print Menu
Tool
News Check the product brochure
Details Find out more about our products
Cutting Condition Check the recommended cutting conditions for the product
DL Image and Series List download zone
CAD CAD data download
DXF Download DXF data
Detail
STEP Download STEP data
STEP Available for download 'Light' STEP data
Detail
STL Download STL data
ALL
DXF Available for batch download DXF data
AII
STEP Available for batch download STEP data
AII
STL Available for batch download STL data

Symbol Description

Tool Material

Ultra Micro Grain Carbide
Ultra micro grain carbide is used as the substrate material
Cubic Boron Nitride
Mitsubishi’s original CBN is used.
Ceramic
Ceramic is used as the substrate material.
High Hardness Powder Metallurgy HSS
High hardness powder metallurgy HSS is used as the substrate material.
Ultra Micro Grain HSS
Cobalt high speed steel is used as the substrate material.
High Speed Steel
High speed steel is used as the substrate material.

Tolerances

Outside Diameter Tolerance
Indicates diameter tolerance of end mill.
R Tolerance Ball
Indicates the radial tolerance of a ball nose end mill.
R Tolerance Radius
Indicates the radial tolerance of an end mill with a corner radius.
Tolerance of Taper Angle
Indicates the tolerance of the taper angle.
Tolerance of Point Angle
Indicates the tolerance of the point angle.
Shank Diameter Tolerance
Indicates the shank diameter tolerance of end mill.

Angle, Coolant hole, Sharp corner edge and Gash land

Helix Angle
Indicates the helix angle of the end mill.
End Cutting Edge with Coolant Hole
Peripheral Cutting Edge with Coolant Hole
Sharp Corner Edge
Indicates the end mill has a sharp corner edge.
Gash Land
Indicates the end mill cutting edge has a gash land.

Coating

SMART MIRACLE Coating
(Al, Cr)N Coaitng optimum for difficult-to-cut materials.
SMART MIRACLE VQT Coating
(Al, Cr)N coating optimum for Ti-alloys.
SMART MIRACLE VQN Coating
(Al, Ti, Si)N coating optimum for Ni-based alloys.
IMPACT MIRACLE REVOLUTION Coating
A coating which adds the excellent high oxidation temperature of (AL, Cr, Si) N-based films to the nano crystal technology of VF.
IMPACT MIRACLE Coating
Single phase nano crystal coating technology for higher film hardness and heat resistance.
MS PLUS Coating
Offers higher versatility for carbon steel, alloy steel and hardened steel.
MS Coating
PVD offers higher versatility.
MIRACLE Coating
The original Miracle (Al, Ti)N coating also suitable for dry cutting of carbon steels and hardened steels.
CRN Coating
Newly developed CrN coating for Copper Electrodes machining.
DLC Coating
Hardness similar to that of CVD diamond coating achieved with high adhesion strength. (Jointly developed with SHINMAYWA INDUSTRIES, LTD.)
CVD Diamond Coated End Mills CFRP
Suitable for CFRP
CVD Diamond Coated End Mills
High performance coating for hard brittle materials excelling in film adhesion to the substrate.
Diamond Coating
Suitable for graphite machining.
VIOLET Coating
The original Miracle (Al, Ti)N coating achieves longer tool life.

Property list

Alphabetical

Property Symbols Content
ADJLX adjustment limit maximum
ADJRG adjustment range
ALF clearance angle radial
ALP clearance angle axial
AN clearance angle major
ANN clearance angle minor
APMX depth of cut maximum
AS clearance angle wiper edge
ASP adjusting screw protrusion
AZ plunge depth maximum
B shank width
BBD balanced by design
BCH corner chamfer length
BD body diameter
BDX body diameter maximum
BHCC bolt hole circle count
BHTA body half taper angle
BMC body material code
BS wiper edge length
BSR wiper edge radius
CASC cartridge size code
CB chip breaker face count
CBP chip breaker property
CBDP connection bore depth
CBMD chip breaker manufacturers designation
CCMS connection code machine side
CCWS connection code workpiece side
CCP chamfer corner property
CDI insert cutting diameter
CDX cutting depth maximum
CEATC tool cutting edge angle type code
CECC cutting edge condition code
CEDC cutting edge count
CF spot chamfer
CHW corner chamfer width
CICT cutting item count
CNC corner count
CND coolant entry diameter
CNSC coolant entry style code
CNT coolant entry thread size
CP coolant pressure
CRE spot radius
CRKS connection retention knob thread size
CSP coolant supply property
CTP coating property
CTX cutting point translation X-direction
CTY cutting point translation Y-direction
CUTDIA work piece parting diameter maximum
CUB connection unit basis
CW cutting width
CWX cutting width maximum
CXD coolant exit diameter
CXSC coolant exit style code
CZC connection size code
D1 fixing hole diameter
DAH diameter access hole
DAXN axial groove outside diameter minimum
DAXX axial groove outside diameter maximum
DBC diameter bolt circle
DC cutting diameter
DCB connection bore diameter
DCBN connection bore diameter minimum
DCBX connection bore diameter maximum
DCC design configuration style code
DCCB counterbore diameter connection bore
DCIN cutting diameter internal
DCINN cutting diameter internal minimum
DCINX cutting diameter internal maximum
DCN cutting diameter minimum
DCON connection diameter
DCONMS connection diameter machine side
DCONWS connection diameter workpiece side
DCSC cutting diameter size code
DCSFMS contact surface diameter machine side
DCX cutting diameter maximum
DF flange diameter
DHUB hub diameter
DMIN minimum bore diameter
DMM shank diameter
DN neck diameter
DRVA drive angle
EPSR insert included angle
FHA flute helix angle
FHCSA fixing hole countersunk angle
FHCSD fixing hole countersunk diameter
FLGT flange thickness
FMT form type
FXHLP fixing hole property
GAMF rake angle radial
GAMN rake angle normal
GAMO rake angle orthogonal
GAMP rake angle axial
GAN insert rake angle
H shank height
HA thread height theoretical
HAND hand
HBH head bottom offset height
HBKL head back offset length
HBKW head back offset width
HBL head bottom offset length
HC thread height actual
HF functional height
HHUB hub height
HTB body height
IC inscribed circle diameter
IFS insert mounting style code
IIC insert interface code
INSL insert length
KAPR tool cutting edge angle
KCH corner chamfer angle
KRINS cutting edge angle major
KWL keyway length
KWW keyway width
KYP keyway property
L cutting edge length
LAMS inclination angle
LB body length
LBB chip breaker width
LBX body length maximum
LCCB counterbore depth connection bore
LCF length chip flute
LDRED reduced body diameter length
LE cutting edge effective length
LF functional length
LFA a dimension on lf
LH head length
LPR protruding length
LS shank length
LSC clamping length
LSCN clamping length minimum
LSCX clamping length maximum
LTA LTA length (length from MCS to CRP)
LU usable length
LUX usable length maximum
M m-dimension
M2 distance between the nominal inscribed circle and the corner of an insert that has the secondary included angle
MHA mounting hole angle
MHD mounting hole distance
MHH mounting hole height
MIID master insert identification
MTP clamping type code
NCE cutting end count
NOF flute count
NOI insert index count
NT tooth count
OAH overall height
OAL overall length
OAW overall width
PDPT profile depth insert
PDX profile distance ex
PDY profile distance ey
PFS profile style code
PL point length
PNA profile included angle
PSIR tool lead angle
PSIRL cutting edge angle major left hand
PSIRR cutting edge angle major right hand
RAL relief angle left hand
RAR relief angle right hand
RCP rounded corner property
RE corner radius
REL corner radius left hand
RER corner radius right hand
RMPX ramping angle maximum
RPMX rotational speed maximum
S insert thickness
S1 insert thickness total
SC insert shape code
SDL step diameter length
SIG point angle
SSC insert seat size code
SX shank cross section shape code
TC tolerance class insert
TCE tipped cutting edge code
TCTR thread tolerance class
TD thread diameter
THFT thread form type
THL threading length
THLGTH thread length
THSC tool holder shape code
THUB hub thickness
TP thread pitch
TPI threads per inch
TPIN threads per inch minimum
TPIX threads per inch maximum
TPN thread pitch minimum
TPT thread profile type
TPX thread pitch maximum
TQ torque
TSYC tool style code
TTP thread type
ULDR usable length diameter ratio
UST unit system
W1 insert width
WEP wiper edge property
WF functional width
WF2 distance between the cutting reference point and the front seating surface of a turning tool
WFS functional width secondary
WT weight of item
ZEFF face effective cutting edge count
ZEFP peripheral effective cutting edge count
ZNC cutting edge center count
ZNF face mounted insert count
ZNP peripheral mounted insert count

List of Reference Symbols Complying with ISO13399

ISO13399 Reference Symbols Content
CIP Coordinate system In Process
CRP Cutting Reference Point
CSW Coordinate System Workpiece side
MCS Mounting Coordinate System
