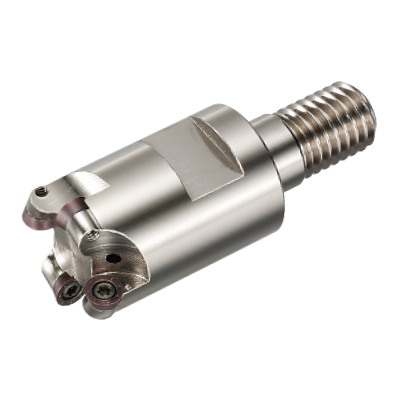

ARX_Screw-in_MM （Multi Functional Milling）

P M K H
  • Type1
  • Small Diameter Radius End Mill
  • Screw-in Type
  • DCONMS=Metric

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D Model(DXF) 3D Detail Model(STP,STL) 3D Light Model(STP,STL) Product List(XLSX)
EDP Order Number Type Stock UST HAND DC DCX LF OAL DCONMS S10 DHUB CRKS APMX RMPX RPMX CSP CICT ZEFP GAMP GAMF WT
454213 ARX25R163M08A30 Type 1 M Right Hand 10 16 30 48 8.5 10 14.7 M8 2.5 13.7 ° ◯ 3 3
454272 ARX30R173M08A30 Type 1 M Right Hand 11 17 30 48 8.5 10 14.5 M8 3 18.42 ° ◯ 3 3
454281 ARX30R203M10A30 Type 1 M Right Hand 14 20 30 49 10.5 14 18.5 M10 3 13.21 ° ◯ 3 3
454230 ARX25R204M10A30 Type 1 M Right Hand 15 20 30 49 10.5 14 18.6 M10 2.5 9.23 ° ◯ 4 4
454264 ARX30R163M08A30 Type 1 M Right Hand 16 16 30 48 8.5 10 14.6 M8 3 21.25 ° ◯ 3 3
454299 ARX30R224M10A30 Type 1 M Right Hand 16 22 30 49 10.5 14 18.5 M10 3 11.13 ° ◯ 4 4
454221 ARX25R173M08A30 Type 1 M Right Hand 17 17 30 48 8.5 10 14.5 M8 2.5 12.22 ° ◯ 3 3
454248 ARX25R224M10A30 Type 1 M Right Hand 17 22 30 49 10.5 14 18.5 M10 2.5 7.94 ° ◯ 4 4
454301 ARX30R254M12A35 Type 1 M Right Hand 19 25 35 57 12.5 19 23.4 M12 3 9.01 ° ◯ 4 4
454256 ARX25R255M12A35 Type 1 M Right Hand 20 25 35 57 12.5 19 23.6 M12 2.5 6.57 ° ◯ 5 5
