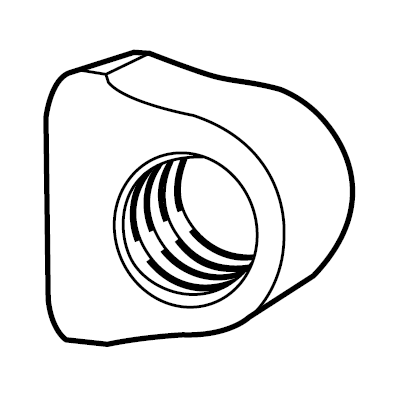

Wedge

CWSF406N

Stock： Inventory maintained.

Wedge

GWCW1

Stock： Inventory maintained.

Wedge

GWCW2

Stock： Inventory maintained.

Wedge

CWAHX640WN

Stock： Inventory maintained.

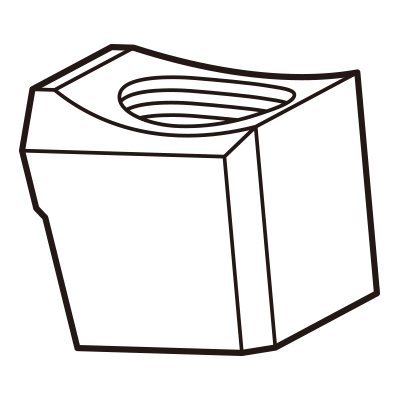

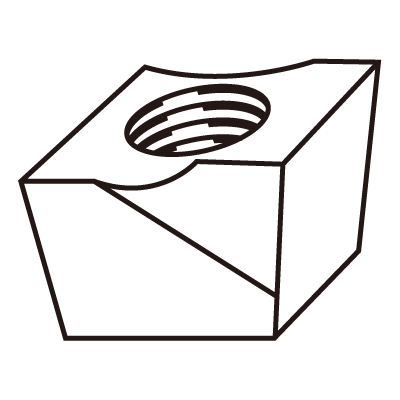

Wedge

CWAOX445N

Stock： Inventory maintained.

Wedge

CWAF10R1

Stock： Inventory maintained.

Wedge

CWAF10R2

Stock： Inventory maintained. To be replaced by new products.

Wedge

CWAF10R3

Stock： Inventory maintained. To be replaced by new products.

Wedge

CWAF5L

Stock： Inventory maintained. To be replaced by new products.

Wedge

CWAF5R

Stock： Inventory maintained. To be replaced by new products.

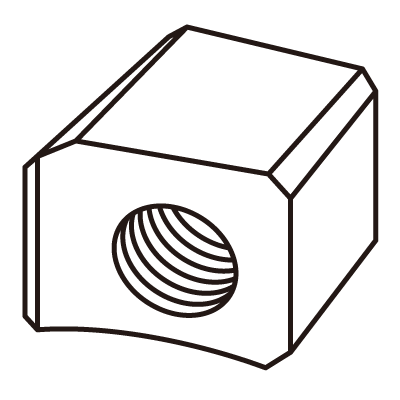

Wedge-T

CWNSE300TR

Stock： Inventory maintained. To be replaced by new products.

Wedge

CWS42SEL

Stock： Inventory maintained.

Wedge

CWS42SER

Stock： Inventory maintained.

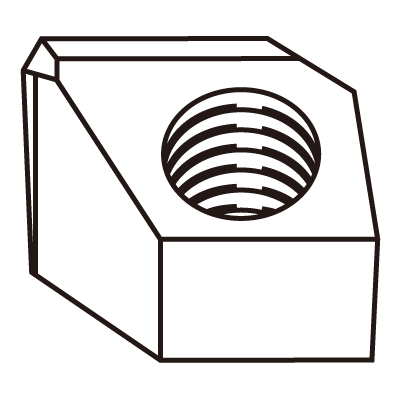

Wedge

CWS42SPL

Stock： Inventory maintained.

Wedge

CWS42SPR

Stock： Inventory maintained.

Wedge

CWS43SNN

Stock： Inventory maintained.

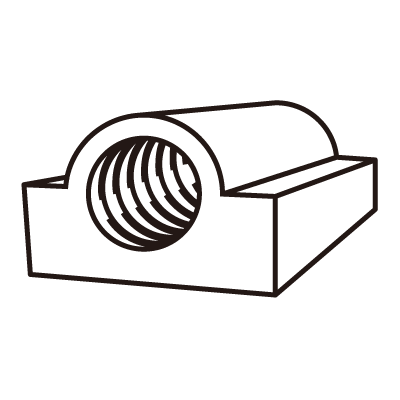

Wedge

CWS5

Stock： Inventory maintained.

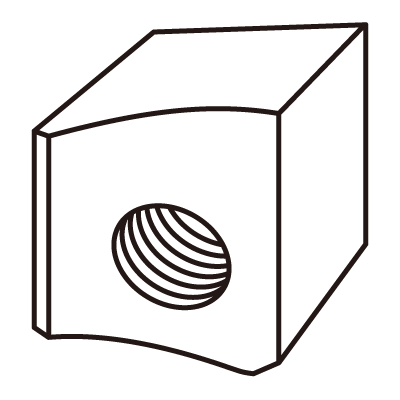

Wedge-T

CWSE300TR

Stock： Inventory maintained.

Wedge-S

CWSE445SN

Stock： Inventory maintained.

Wedge-T

CWSE445TL

Stock： Inventory maintained. To be replaced by new products.

1 （このページ）
2

Property Symbols	Content
ADJLX	adjustment limit maximum
ADJRG	adjustment range
ALF	clearance angle radial
ALP	clearance angle axial
AN	clearance angle major
ANN	clearance angle minor
APMX	depth of cut maximum
AS	clearance angle wiper edge
ASP	adjusting screw protrusion
AZ	plunge depth maximum
B	shank width
BBD	balanced by design
BCH	corner chamfer length
BD	body diameter
BDX	body diameter maximum
BHCC	bolt hole circle count
BHTA	body half taper angle
BMC	body material code
BS	wiper edge length
BSR	wiper edge radius
CASC	cartridge size code
CB	chip breaker face count
CBP	chip breaker property
CBDP	connection bore depth
CBMD	chip breaker manufacturers designation
CCMS	connection code machine side
CCWS	connection code workpiece side
CCP	chamfer corner property
CDI	insert cutting diameter
CDX	cutting depth maximum
CEATC	tool cutting edge angle type code
CECC	cutting edge condition code
CEDC	cutting edge count
CF	spot chamfer
CHW	corner chamfer width
CICT	cutting item count
CNC	corner count
CND	coolant entry diameter
CNSC	coolant entry style code
CNT	coolant entry thread size
CP	coolant pressure
CRE	spot radius
CRKS	connection retention knob thread size
CSP	coolant supply property
CTP	coating property
CTX	cutting point translation X-direction
CTY	cutting point translation Y-direction
CUTDIA	work piece parting diameter maximum
CUB	connection unit basis
CW	cutting width
CWX	cutting width maximum
CXD	coolant exit diameter
CXSC	coolant exit style code
CZC	connection size code
D1	fixing hole diameter
DAH	diameter access hole
DAXN	axial groove outside diameter minimum
DAXX	axial groove outside diameter maximum
DBC	diameter bolt circle
DC	cutting diameter
DCB	connection bore diameter
DCBN	connection bore diameter minimum
DCBX	connection bore diameter maximum
DCC	design configuration style code
DCCB	counterbore diameter connection bore
DCIN	cutting diameter internal
DCINN	cutting diameter internal minimum
DCINX	cutting diameter internal maximum
DCN	cutting diameter minimum
DCON	connection diameter
DCONMS	connection diameter machine side
DCONWS	connection diameter workpiece side
DCSC	cutting diameter size code
DCSFMS	contact surface diameter machine side
DCX	cutting diameter maximum
DF	flange diameter
DHUB	hub diameter
DMIN	minimum bore diameter
DMM	shank diameter
DN	neck diameter
DRVA	drive angle
EPSR	insert included angle
FHA	flute helix angle
FHCSA	fixing hole countersunk angle
FHCSD	fixing hole countersunk diameter
FLGT	flange thickness
FMT	form type
FXHLP	fixing hole property
GAMF	rake angle radial
GAMN	rake angle normal
GAMO	rake angle orthogonal
GAMP	rake angle axial
GAN	insert rake angle
H	shank height
HA	thread height theoretical
HAND	hand
HBH	head bottom offset height
HBKL	head back offset length
HBKW	head back offset width
HBL	head bottom offset length
HC	thread height actual
HF	functional height
HHUB	hub height
HTB	body height
IC	inscribed circle diameter
IFS	insert mounting style code
IIC	insert interface code
INSL	insert length
KAPR	tool cutting edge angle
KCH	corner chamfer angle
KRINS	cutting edge angle major
KWL	keyway length
KWW	keyway width
KYP	keyway property
L	cutting edge length
LAMS	inclination angle
LB	body length
LBB	chip breaker width
LBX	body length maximum
LCCB	counterbore depth connection bore
LCF	length chip flute
LDRED	reduced body diameter length
LE	cutting edge effective length
LF	functional length
LFA	a dimension on lf
LH	head length
LPR	protruding length
LS	shank length
LSC	clamping length
LSCN	clamping length minimum
LSCX	clamping length maximum
LTA	LTA length (length from MCS to CRP)
LU	usable length
LUX	usable length maximum
M	m-dimension
M2	distance between the nominal inscribed circle and the corner of an insert that has the secondary included angle
MHA	mounting hole angle
MHD	mounting hole distance
MHH	mounting hole height
MIID	master insert identification
MTP	clamping type code
NCE	cutting end count
NOF	flute count
NOI	insert index count
NT	tooth count
OAH	overall height
OAL	overall length
OAW	overall width
PDPT	profile depth insert
PDX	profile distance ex
PDY	profile distance ey
PFS	profile style code
PL	point length
PNA	profile included angle
PSIR	tool lead angle
PSIRL	cutting edge angle major left hand
PSIRR	cutting edge angle major right hand
RAL	relief angle left hand
RAR	relief angle right hand
RCP	rounded corner property
RE	corner radius
REL	corner radius left hand
RER	corner radius right hand
RMPX	ramping angle maximum
RPMX	rotational speed maximum
S	insert thickness
S1	insert thickness total
SC	insert shape code
SDL	step diameter length
SIG	point angle
SSC	insert seat size code
SX	shank cross section shape code
TC	tolerance class insert
TCE	tipped cutting edge code
TCTR	thread tolerance class
TD	thread diameter
THFT	thread form type
THL	threading length
THLGTH	thread length
THSC	tool holder shape code
THUB	hub thickness
TP	thread pitch
TPI	threads per inch
TPIN	threads per inch minimum
TPIX	threads per inch maximum
TPN	thread pitch minimum
TPT	thread profile type
TPX	thread pitch maximum
TQ	torque
TSYC	tool style code
TTP	thread type
ULDR	usable length diameter ratio
UST	unit system
W1	insert width
WEP	wiper edge property
WF	functional width
WF2	distance between the cutting reference point and the front seating surface of a turning tool
WFS	functional width secondary
WT	weight of item
ZEFF	face effective cutting edge count
ZEFP	peripheral effective cutting edge count
ZNC	cutting edge center count
ZNF	face mounted insert count
ZNP	peripheral mounted insert count

Property Symbols

Content

ADJLX

adjustment limit maximum

ADJRG

adjustment range

ALF

clearance angle radial

ALP

clearance angle axial

clearance angle major

ANN

clearance angle minor

APMX

depth of cut maximum

clearance angle wiper edge

ASP

adjusting screw protrusion

plunge depth maximum

shank width

BBD

balanced by design

BCH

corner chamfer length

body diameter

BDX

body diameter maximum

BHCC

bolt hole circle count

BHTA

body half taper angle

BMC

body material code

wiper edge length

BSR

wiper edge radius

CASC

cartridge size code

chip breaker face count

CBP

chip breaker property

CBDP

connection bore depth

CBMD

chip breaker manufacturers designation

CCMS

connection code machine side

CCWS

connection code workpiece side

CCP

chamfer corner property

CDI

insert cutting diameter

CDX

cutting depth maximum

CEATC

tool cutting edge angle type code

CECC

cutting edge condition code

CEDC

cutting edge count

spot chamfer

CHW

corner chamfer width

CICT

cutting item count

CNC

corner count

CND

coolant entry diameter

CNSC

coolant entry style code

CNT

coolant entry thread size

coolant pressure

CRE

spot radius

CRKS

connection retention knob thread size

CSP

coolant supply property

CTP

coating property

CTX

cutting point translation X-direction

CTY

cutting point translation Y-direction

CUTDIA

work piece parting diameter maximum

CUB

connection unit basis

cutting width

CWX

cutting width maximum

CXD

coolant exit diameter

CXSC

coolant exit style code

CZC

connection size code

fixing hole diameter

DAH

diameter access hole

DAXN

axial groove outside diameter minimum

DAXX

axial groove outside diameter maximum

DBC

diameter bolt circle

cutting diameter

DCB

connection bore diameter

DCBN

connection bore diameter minimum

DCBX

connection bore diameter maximum

DCC

design configuration style code

DCCB

counterbore diameter connection bore

DCIN

cutting diameter internal

DCINN

cutting diameter internal minimum

DCINX

cutting diameter internal maximum

DCN

cutting diameter minimum

DCON

connection diameter

DCONMS

connection diameter machine side

DCONWS

connection diameter workpiece side

DCSC

cutting diameter size code

DCSFMS

contact surface diameter machine side

DCX

cutting diameter maximum

flange diameter

DHUB

hub diameter

DMIN

minimum bore diameter

DMM

shank diameter

neck diameter

DRVA

drive angle

EPSR

insert included angle

FHA

flute helix angle

FHCSA

fixing hole countersunk angle

FHCSD

fixing hole countersunk diameter

FLGT

flange thickness

FMT

form type

FXHLP

fixing hole property

GAMF

rake angle radial

GAMN

rake angle normal

GAMO

rake angle orthogonal

GAMP

rake angle axial

GAN

insert rake angle

shank height

thread height theoretical

HAND

hand

HBH

head bottom offset height

HBKL

head back offset length

HBKW

head back offset width

HBL

head bottom offset length

thread height actual

functional height

HHUB

hub height

HTB

body height

inscribed circle diameter

IFS

insert mounting style code

IIC

insert interface code

INSL

insert length

KAPR

tool cutting edge angle

KCH

corner chamfer angle

KRINS

cutting edge angle major

KWL

keyway length

KWW

keyway width

KYP

keyway property

cutting edge length

LAMS

inclination angle

body length

LBB

chip breaker width

LBX

body length maximum

LCCB

counterbore depth connection bore

LCF

length chip flute

LDRED

reduced body diameter length

cutting edge effective length

functional length

LFA

a dimension on lf

head length

LPR

protruding length

shank length

LSC

clamping length

LSCN

clamping length minimum

LSCX

clamping length maximum

LTA

LTA length (length from MCS to CRP)

usable length

LUX

usable length maximum

m-dimension

distance between the nominal inscribed circle and the corner of an insert that has the secondary included angle

MHA

mounting hole angle

MHD

mounting hole distance

MHH

mounting hole height

MIID

master insert identification

MTP

clamping type code

NCE

cutting end count

NOF

flute count

NOI

insert index count

tooth count

OAH

overall height

OAL

overall length

OAW

overall width

PDPT

profile depth insert

PDX

profile distance ex

PDY

profile distance ey

PFS

profile style code

point length

PNA

profile included angle

PSIR

tool lead angle

PSIRL

cutting edge angle major left hand

PSIRR

cutting edge angle major right hand

RAL

relief angle left hand

RAR

relief angle right hand

RCP

rounded corner property

corner radius

REL

corner radius left hand

RER

corner radius right hand

RMPX

ramping angle maximum

RPMX

rotational speed maximum

insert thickness

insert thickness total

insert shape code

SDL

step diameter length

SIG

point angle

SSC

insert seat size code

shank cross section shape code

tolerance class insert

TCE

tipped cutting edge code

TCTR

thread tolerance class

thread diameter

THFT

thread form type

THL

threading length

THLGTH

thread length

THSC

tool holder shape code

THUB

hub thickness

thread pitch

TPI

threads per inch

TPIN

threads per inch minimum

TPIX

threads per inch maximum

TPN

thread pitch minimum

TPT

thread profile type

TPX

thread pitch maximum

torque

TSYC

tool style code

TTP

thread type

ULDR

usable length diameter ratio

UST

unit system

insert width

WEP

wiper edge property

functional width

WF2

distance between the cutting reference point and the front seating surface of a turning tool

WFS

functional width secondary

weight of item

ZEFF

face effective cutting edge count

ZEFP

peripheral effective cutting edge count

ZNC

cutting edge center count

ZNF

face mounted insert count

ZNP

peripheral mounted insert count

ISO13399 Reference Symbols	Content
CIP	Coordinate system In Process
CRP	Cutting Reference Point
CSW	Coordinate System Workpiece side
MCS	Mounting Coordinate System
PCS	Primary Coordinate System

ISO13399 Reference Symbols

Content

CIP

Coordinate system In Process

CRP

Cutting Reference Point

CSW

Coordinate System Workpiece side

MCS

Mounting Coordinate System

PCS

Primary Coordinate System
