IMX25C4FV250R40026 - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

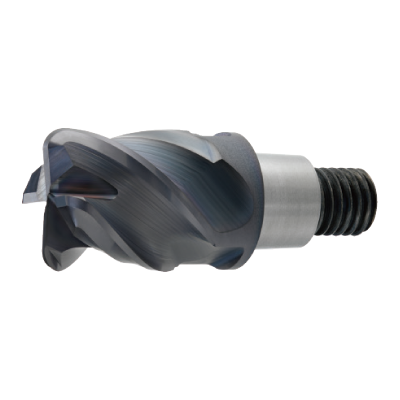

Corner radius head for high efficiency machining, 4 flute, Irregular helix
Radius

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：806151

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed Recommended cutting conditions

Product Details

Stock: Inventory maintained.
Tool_Material: PVD Carbide
Grade: EP6120
UST: M
DC: 25
RE: 4
APMX: 26
LH: 37.5
DCONMS: 24.5
CSP: -
FHA: 45°
NOF: 4
RTL: -0.02
RTU: 0.02
DC_MAX: 0
DC_MIN: -0.03

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
