Turning Tools

PCD Inserts

Positive with hole

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/Z_ISO_insert_T.svg
N

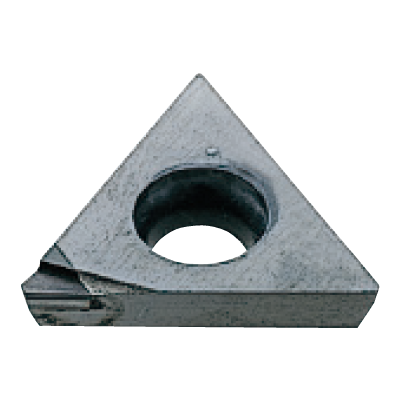

TPGV090202R-F

  • ブレーカ付

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：412929

2D Model(DXF) 3D Detail Model(STP,STL) Details
Stock
Inventory maintained.
Tool_Material
PCD
Grade
MD220
HAND
Right Hand
D1
2.8
IC
5.56
S
2.38
RE
0.2
LE
2.7
EPSR
60°
AN
11°

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
