SRG50C - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

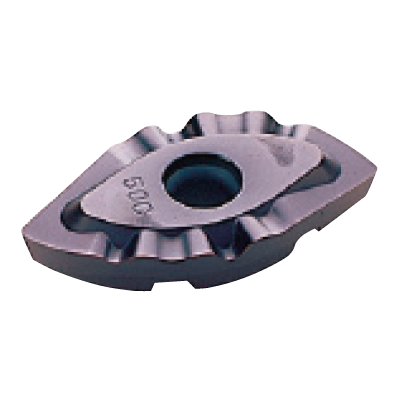

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：389520

2D Model(DXF) 3D Detail Model(STP,STL) Details

Stock: Inventory maintained.
Tool_Material: PVD Carbide
Grade: VP20RT
HAND: Right Hand
INSL: 40
W1: 26
S: 8.5
AN: 11°
CBMD: Standard

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
