Turning Tools

PCD Inserts

Positive with hole

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/Z_ISO_insert_T.svg
N

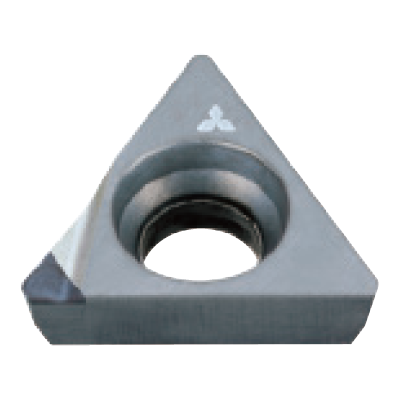

NP-TPMX090204R-F

  • ニュープチカット
  • ブレーカ付

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：386151

2D Model(DXF) 3D Detail Model(STP,STL) Details
Stock
Non stock, produced to order only.
Tool_Material
PCD
Grade
MD220
HAND
Right Hand
D1
3
IC
5.56
S
2.38
RE
0.4
LE
1.6
EPSR
60°
AN
11°

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
