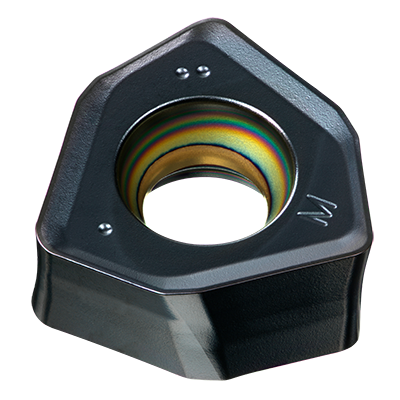

JOMU140715ZZER-L

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：22893024

2D Model(DXF) 3D Detail Model(STP,STL) Details
Stock
Inventory maintained.
Tool_Material
CVD Carbide
Grade
MV1030
HAND
Right Hand
IC
14
S
6.575
BS
1.3
RE
1.5
CBMD
L

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
