CPGT080204 - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

ブレーカ付

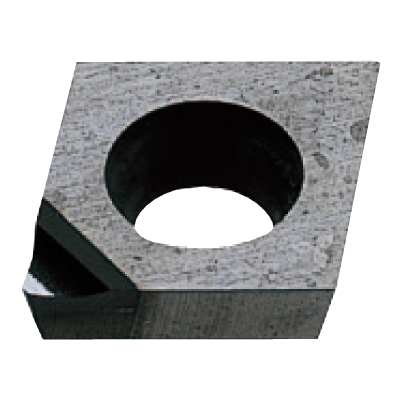

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：296155

2D Model(DXF) 3D Detail Model(STP,STL) Details

Stock: Inventory maintained.
Tool_Material: PCD
Grade: MD220
HAND: Neutral
D1: 3.4
IC: 7.94
S: 2.38
RE: 0.4
LE: 3.6
EPSR: 80°
AN: 11°

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
