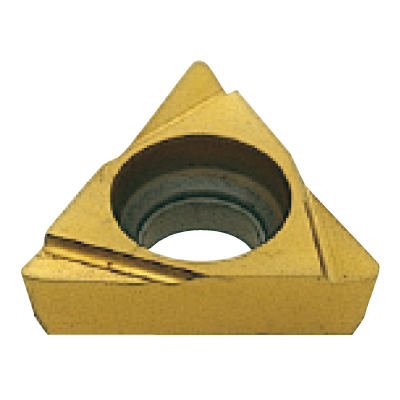

TPGX090204R - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：280209

2D Model(DXF) 3D Detail Model(STP,STL) Details

Stock: Inventory maintained.
Tool_Material: Cermet
Grade: NX2525
HAND: Right Hand
D1: 3
IC: 5.56
S: 2.38
RE: 0.4
EPSR: 60°
AN: 11°
