Turning Tools

ISO Inserts

Positive without hole

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/Z_ISO_insert_T_nothing.svg
K

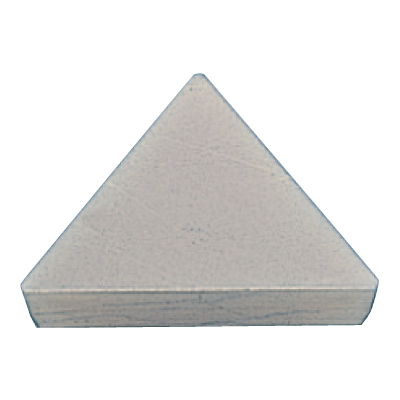

TPGN160304

  • 鋳鉄の荒切削用ブレーカ

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：279988

2D CAD data(DXF) 3D CAD data(STP)Detailed

Product Details
Stock
Inventory maintained.
Tool_Material
Carbide
Grade
HTi05T
HAND
Neutral
D1
0
IC
9.525
S
3.18
RE
0.4
EPSR
60°
AN
11°

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
