Turning Tools

Small Tools Inserts

Insert for CSVH Holder

P M K S

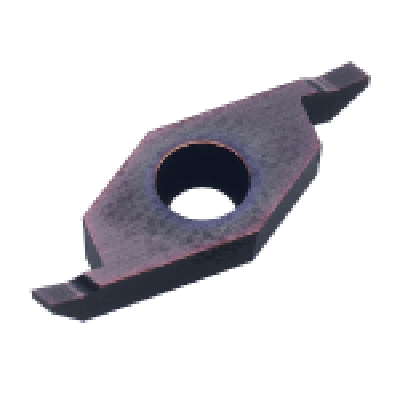

CSVTC0850R-B

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：266845

Product Details
Stock
Inventory maintained.
Tool_Material
PVD Carbide
Grade
VP15KZ
HAND
Right Hand
IC
6.35
S
2.38
RER
0
REL
0
PSIRR
24°
CDX
2
CW
0.8
ANN
3°
CBMD
B

Stock:
