CSVTBXL - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

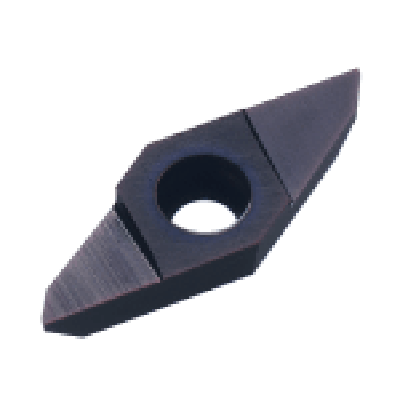

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：266765

Create Tooling Sheet

Product Details

Stock: Inventory maintained.
Tool_Material: PVD Carbide
Grade: VP15KZ
HAND: Left Hand
IC: 6.35
S: 2.38
RER: 0
REL: 0
CTX: 0.7
CF: 0.035
PSIRL: 4°
B2: 44°
ANN: 7°
CBMD: Flat Top

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
