Turning Tools

CBN Inserts

Positive with hole

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/Z_ISO_insert_D.svg
NEW
H

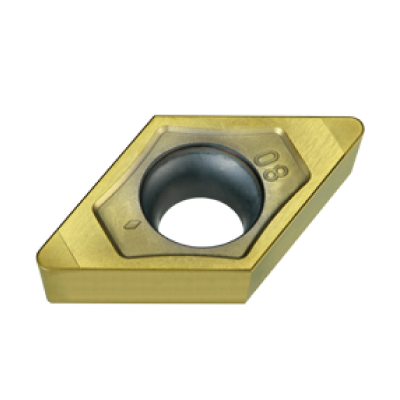

BL-DCGT11T304TN2

  • 高硬度鋼の連続切削加工から強断続切削加工まで、幅広い切削加工領域に適しています。

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：23883239

2D CAD data(DXF) 3D CAD data(STP)Detailed

Product Details
Stock
Inventory maintained.
Tool_Material
Coated CBN
Grade
BC8220
HAND
Neutral
D1
4.4
IC
9.525
S
3.97
RE
0.4
LE
2.1
EPSR
55°
AN
7°

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.

About 'Function Icons' and 'Download Icons'

Add products to 'Favourites'
YouTube link
Print Menu
Product Brochure Check the product brochure
Product Details Find out more about our products
Recommended cutting conditions Check the recommended cutting conditions for the product
2D CAD data(DXF) Download DXF data
3D CAD data(STP)Detailed Download STEP data
3D CAD data(STP,STL)Simplified Available for download 'Light' STEP data
2D CAD data(DXF)
Batch download Available for batch download DXF data
3D CAD data(STP)
Batch downloadDetailed Available for batch download STEP data
3D CAD data(STP,STL)
Batch downloadSimplified Available for batch download STL data
Product List(XLSX) Download the images and the list of tools of each series
