Turning Tools

CBN Inserts

Positive with hole

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/Z_ISO_insert_C.svg
NEW
H

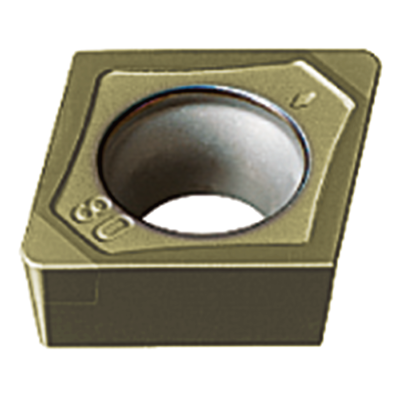

BL-CCGT09T308TN2

  • ニュープチカット
  • ブレーカ付

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：23883222

2D Model(DXF) 3D Detail Model(STP,STL) Details
Stock
Inventory maintained.
Tool_Material
Coated CBN
Grade
BC8220
HAND
Neutral
D1
4.4
IC
9.525
S
3.97
RE
0.8
LE
2
EPSR
80°
AN
7°

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
