Turning Tools

ISO Inserts

Positive with hole

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/Z_ISO_insert_C.svg
P

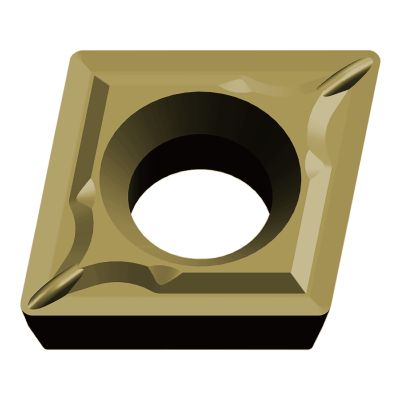

CPMH080202-FP

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：23661349

2D Model(DXF) 3D Detail Model(STP,STL) Details
Stock
Inventory maintained.
Tool_Material
CVD Carbide
Grade
MC6135
HAND
Neutral
D1
3.5
IC
7.94
S
2.38
RE
0.2
EPSR
80°
AN
11°

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
