Turning Tools

ISO Inserts

Positive with hole

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/Z_ISO_insert_T.svg
S

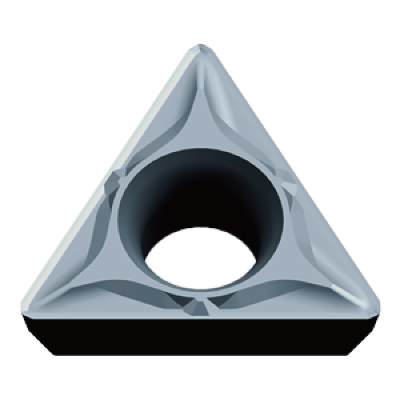

TPMX090202-SW

  • Wiper

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：23119796

2D Model(DXF) 3D Detail Model(STP,STL) Details
Stock
Inventory maintained.
Tool_Material
PVD Carbide
Grade
MP9025
HAND
Neutral
D1
3.2
IC
5.56
S
2.38
RE
0.2
EPSR
60°
AN
11°

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
