Turning Tools

Grooving Inserts

GY Series Insert

P M K S

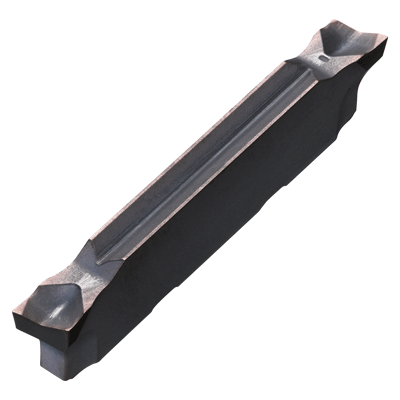

GY2G0300F020R08-GS

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：22824257

2D CAD data(DXF) 3D CAD data(STP)Detailed

Product Details
Stock
Inventory maintained.
Tool_Material
PVD Carbide
Grade
VP20RT
HAND
Right Hand
CW
3
RER
0.2
REL
0.2
PSIRR
8°
LIG
21.5
CDX
18.62
AN
7°
