FSWUP3025L-06A - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

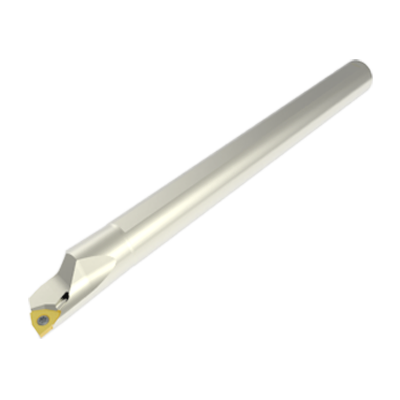

Boring Bars
5°, 7°, 11° positive inserts.
Excellent vibration resistance due to a light dimple head.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：10060759

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Recommended cutting conditions

Product Details

Stock: Inventory maintained.
UST: M
Hand: Left Hand
KAPR: 93°
DMIN: 30
DCONMS: 25
LF: 250
LDRED: 56.3
WF: 15
H: 23.4
GAMF: 0
GAMP: 5°
CSP: ◯
CICT: 1
Applicable_Inserts: WPMT0603〇〇,WPGT0603〇〇
