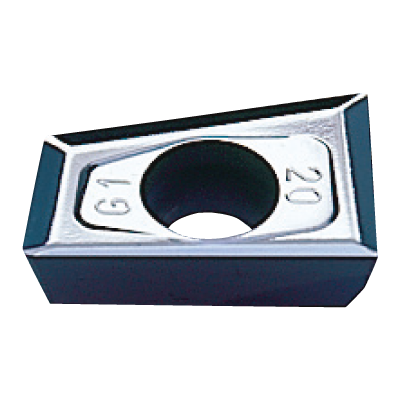

QOGT2576R-G1

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：486830

2D Model(DXF) 3D Detail Model(STP,STL) Details
Stock
Inventory maintained.
Tool_Material
PVD Carbide
Grade
VP15TF
HAND
Right Hand
LE1
25.2
LE2
16.6
LE3
23.1
S
7.6
RE
0.4
CBMD
G

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
