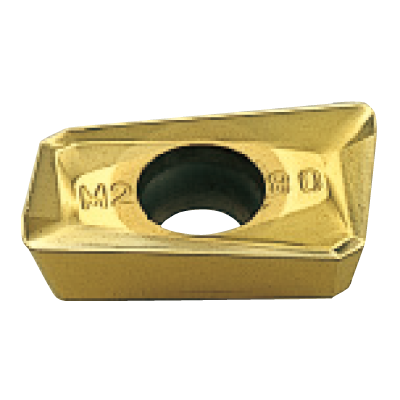

APMT1135PDER-M2

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：208119

2D Model(DXF) 3D Detail Model(STP,STL) Details
Stock
Inventory maintained.
Tool_Material
PVD Carbide
Grade
VP15TF
HAND
Right Hand
RE
0.8
INSL
11.18
W1
6.35
LE
9
BS
1.2
S
3.5
EPSR
85°
AN
11°
CBMD
M

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
