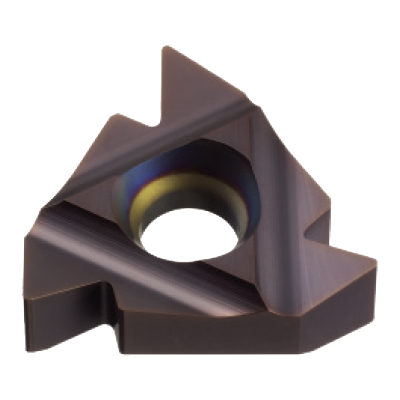

MMT11IR140UN - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：315715

Details

Stock: Inventory maintained.
Tool_Material: PVD Carbide
Grade: VP10MF
HAND: Right Hand
IC: 6.35
S: 3.04
PDY: 0.9
PDX: 1.1
RE: 0.11
PNA: 60°
