Rotating Tools

Rotating Tool Inserts

Milling

P M

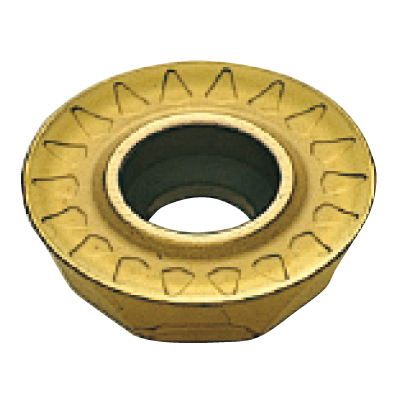

REMX1705EN-JS

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：183337

2D Model(DXF) 3D Detail Model(STP,STL) Details
Stock
Inventory maintained.
Tool_Material
CVD Carbide
Grade
F7030
HAND
Neutral
IC
17.25
S
5.2
AN
20°
CBMD
JS

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
