CGSPR081S20 - Product - Web Catalog | MITSUBISHI MATERIALS CORPORATION

Rotating Tools

Indexable Milling

Chamfer Milling

CGSP

CGSP_Shank_MM （Chamfer Milling）

Chamfer Milling
Shank Type
DCONMS=Metric

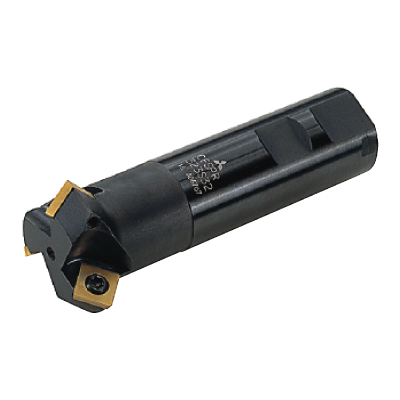

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：146675

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Recommended cutting conditions

Product Details

Stock: Inventory maintained.
UST: M
HAND: Right Hand
KAPR: 30°
DC: 8
DCX: 28.4
LF: 85
DN: 19.5
DCONMS: 20
LH: 40
APMX: 5.9
CSP: -
CICT: 1
ZEFP: 1
