MTTR435502

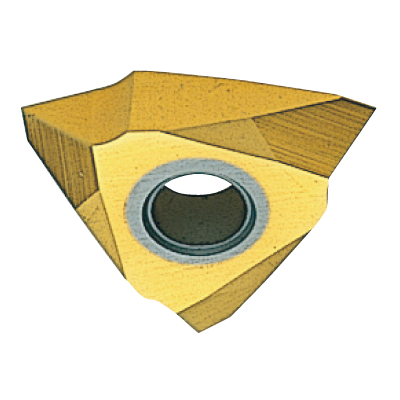

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

EDP No：115313

2D Model(DXF) 3D Detail Model(STP,STL) Details
Stock
Inventory maintained.
Tool_Material
Carbide
Grade
UTi20T
HAND
Right Hand
IC
12.7
W1
4.76
RE
0.2
PNA
55°

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
