Turning Tools

ISO Inserts

Positive with hole

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/Z_ISO_insert_T.svg
P M

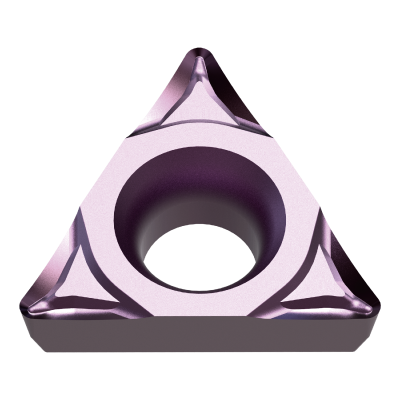

TPGH080201M-FSF-P VP30RT

TPGH080201M-FSF-P

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：10

EDP No：23915121

JAN Code： 4994196910952

2D CAD data(DXF) 3D CAD data(STP)Detailed

Product Details
Stock
Inventory maintained.
Tool_Material
PVD Carbide
Grade
VP30RT
HAND
Neutral
CNC
3
D1
2.4
IC
4.76
S
2.38
RE
0.1
EPSR
60°
AN
11°
