Turning Tools

Turning Holder

Internal Turning

SLV

Round Type SLV

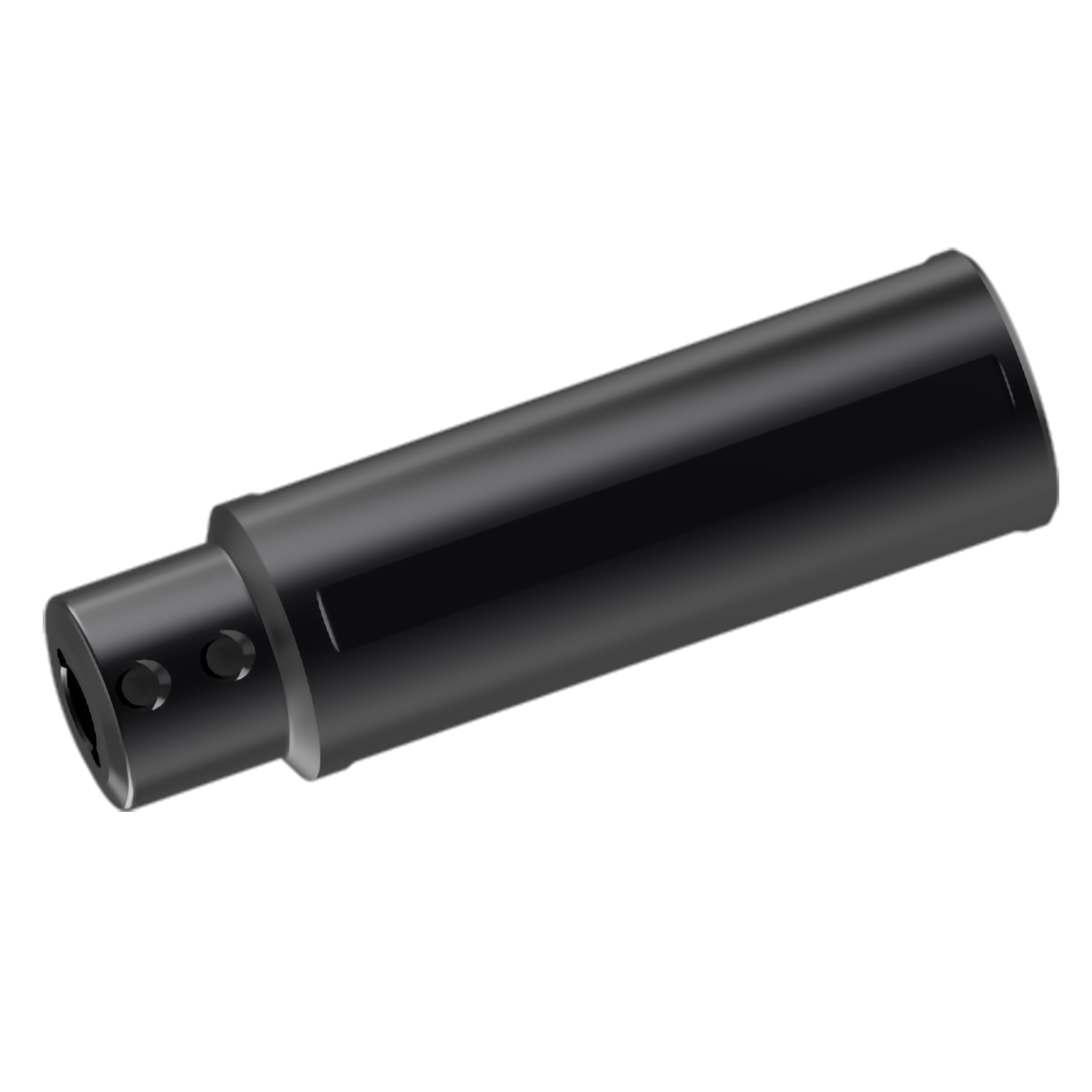

SLV320110100A

SLV320110100A

  • Boring Bars

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：23840720

JAN Code： 4994196888541

2D CAD data(DXF) 3D CAD data(STP)Detailed Product List(XLSX)

Product Details
Stock
Inventory maintained.
DCONMS
32
DCONWS
10
H
31.1
B
31.1
LF
110
BD
25
S10
5
S11
10
LPR
22
CNT
RC1/4
CSP
◯
Shape EDP Order Number Stock Category Bundled quantity
Shape EDP Order Number Product Designation Application

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
