XBSH_S-C

XBSH_S-C （Steel shank with coolant hole）

NEW
  • Type1
  • Type2

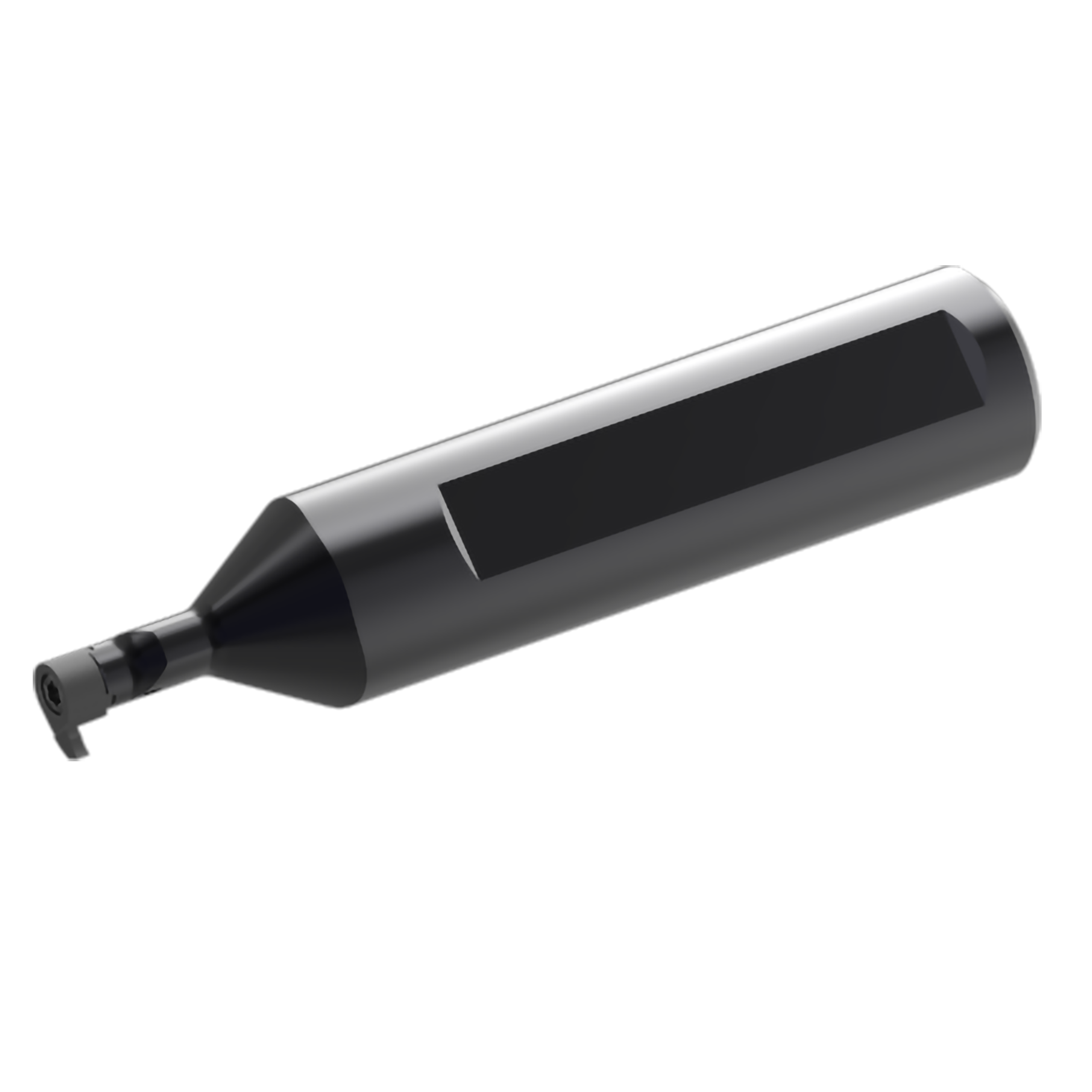

XBSH_S-C

  • Small Tools
  • Versatile Range of Applications with One Holder
  • Machining Threads Instead of Tapping

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)
EDP Order Number Type Stock qty. Price cart HAND DCONMS D2 D3 LDRED LF MIID CICT Applicable_Inserts
23885028 XBSH071600080S-C Type 1 Out of Stock Right Hand 16 4.8 6 12 80 XBSG08H07100R005R 1 XB〇〇〇〇H07
23885035 XBSH081600080S-C Type 2 Out of Stock Right Hand 16 6 - 12 80 XBSG08H08100R005R 1 XB〇〇〇〇H08
23885042 XBSH091600095S-C Type 1 Out of Stock Right Hand 16 6.6 7.4 14 95 XBSG09H09100R005R 1 XB〇〇〇〇H09
23885059 XBSH111600097S-C Type 2 Out of Stock Right Hand 16 8 - 16 97 XBSG11H11100R005R 1 XB〇〇〇〇H11
23885066 XBSH141600100S-C Type 1 Out of Stock Right Hand 16 9.5 11 18 100 XBSG14H14100R005R 1 XB〇〇〇〇H14

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
