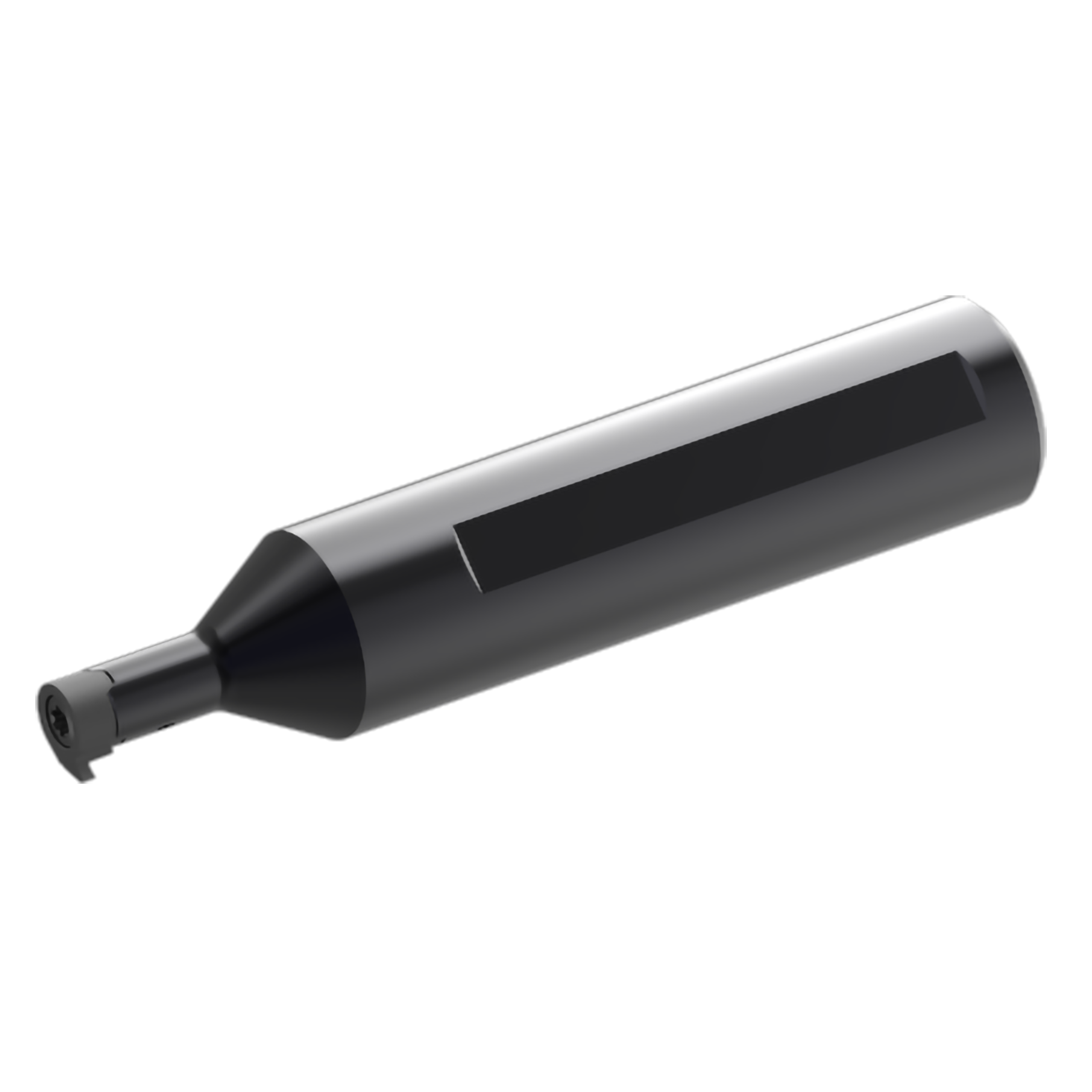

XBSH081600080S-C - Product - Web Catalog | MITSUBISHI MATERIALS U.S.A

Small Tools
Versatile Range of Applications with One Holder
Machining Threads Instead of Tapping

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：23885035

EAN Code： 4994196905484

ANSI：XBSH081600080S-C

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)

Product Details

Stock: Inventory maintained in Japan.
HAND: Right Hand
DCONMS: 16
D2: 6
LDRED: 12
LF: 80
MIID: XBSG08H08100R005R
CICT: 1
Applicable_Inserts: XB〇〇〇〇H08
