PMF_Arbor_MM （Vertical Feed Milling）

P K
  • Type1
  • Type2
  • Type3

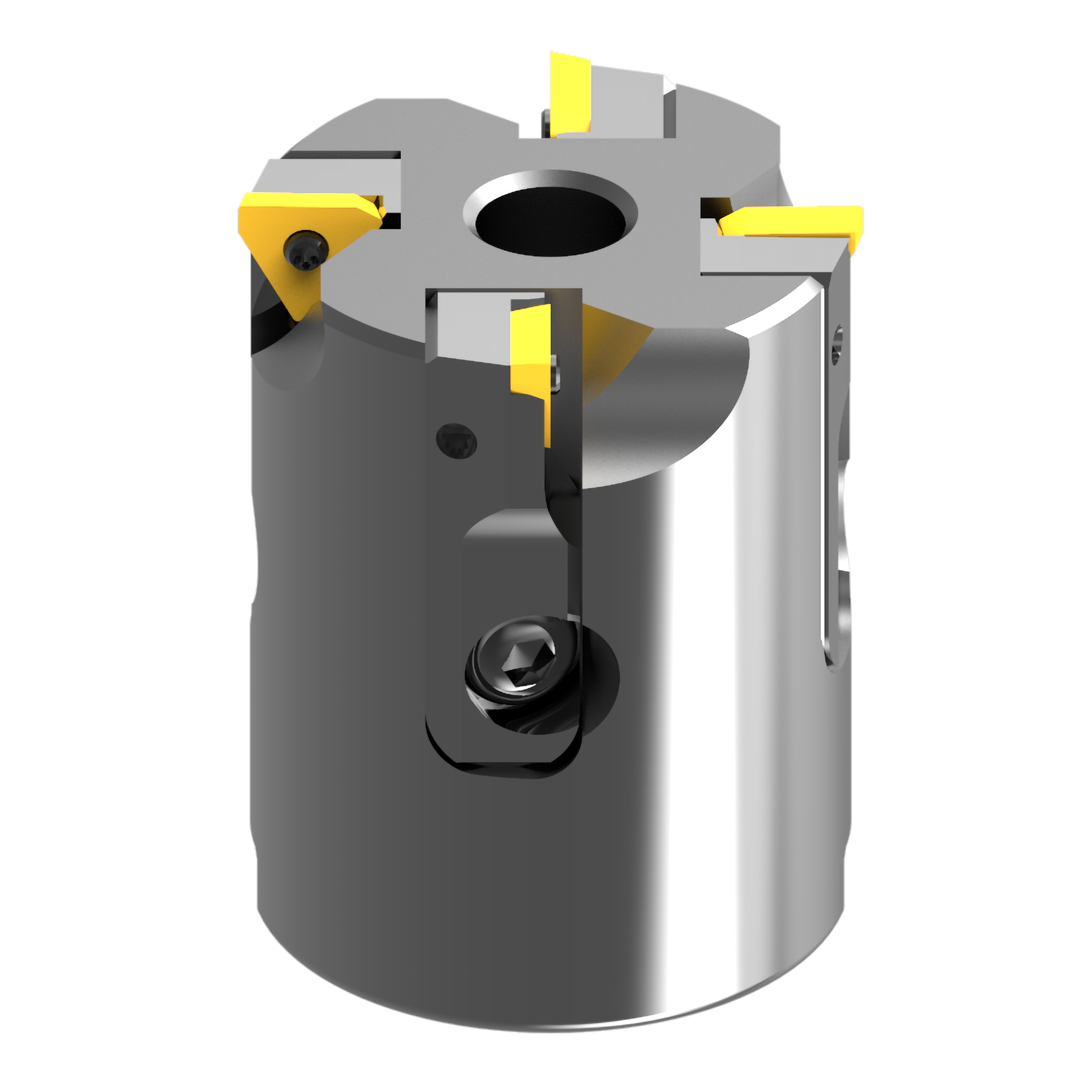

PMF_Arbor_MM

  • Plunge Milling Cutter for Finishing
  • 2 directional cutting with large overhang.
  • Excellent straightness.
  • Excellent wall accuracy.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)
EDP Order Number Type Stock qty. Price cart HAND DC LF DCONMS CBDP DAH DCCB KWW L8 DHUB B2 RPMX CSP CICT ZEFP GAMP GAMF WT
161744 PMF05004A22R Type 1 Out of Stock Right Hand 50 63 22 20 - 12 10.4 6.3 48 1 ° - - 4 4 - - -
161752 PMF06306A22R Type 2 Out of Stock Right Hand 63 63 22 20 11 18 10.4 6.3 60 1 ° - - 6 6 - - -
161761 PMF08008A27R Type 3 Out of Stock Right Hand 80 50 27 23 13.5 30 12.4 7 75 1 ° - - 8 8 - - -

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
