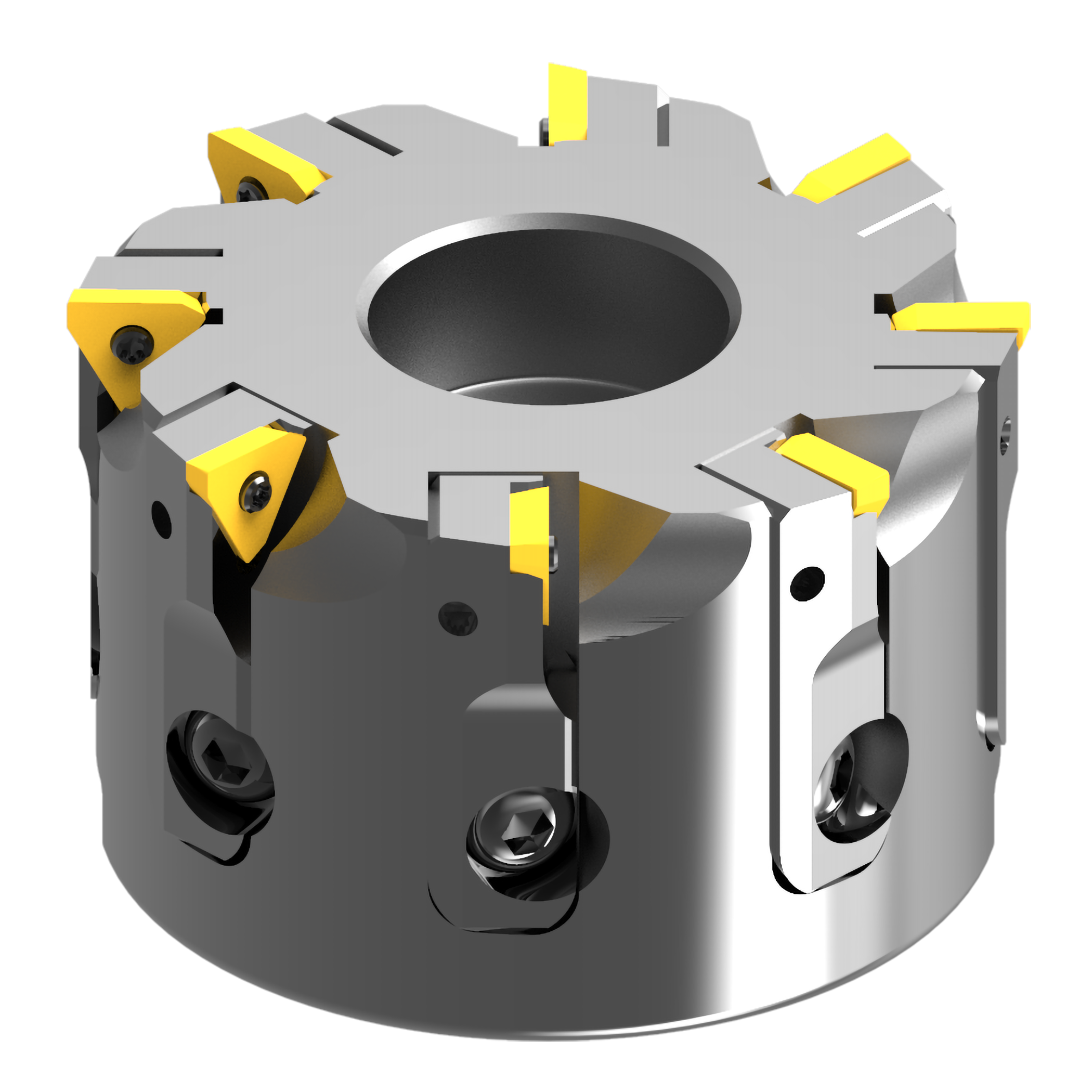

Plunge Milling Cutter for Finishing
2 directional cutting with large overhang.
Excellent straightness.
Excellent wall accuracy.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：161761

EAN Code： 4994196243029

ANSI：PMF08008A27R

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Recommended cutting conditions

Product Details

Stock: Inventory maintained.
HAND: Right Hand
DC: 80
LF: 50
DCONMS: 27
CBDP: 23
DAH: 13.5
DCCB: 30
KWW: 12.4
L8: 7
DHUB: 75
B2: 1°
CSP: -
CICT: 8
ZEFP: 8
GAMP: 0
GAMF: 0
