BXD4000

BXD4000_Shank_MM （Aluminium Alloys and Difficult-to-cut Materials）

P M N S H
  • Type1
  • Type2

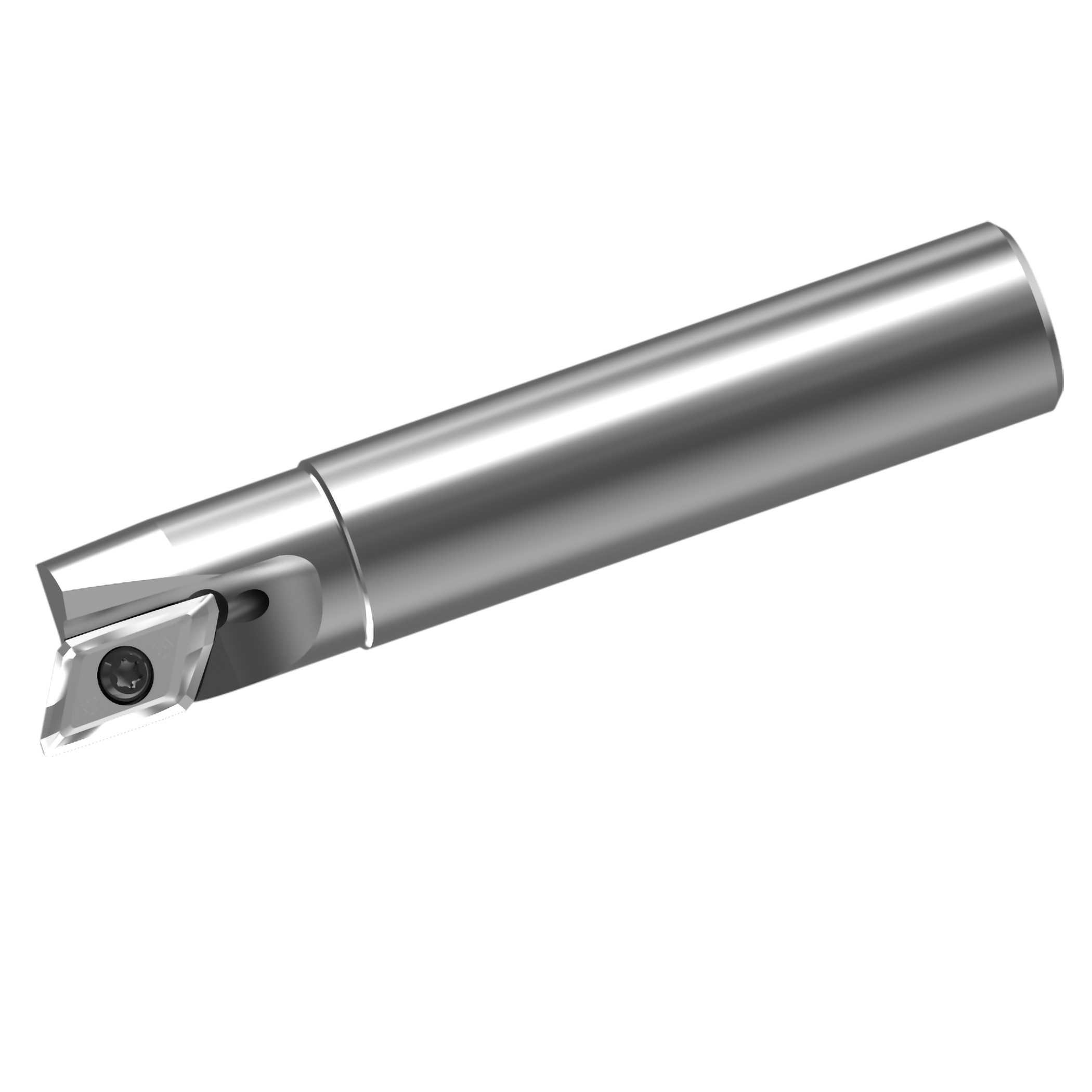

BXD4000_Shank_MM

  • Milling cutter for Aluminum Alloys and Difficult-to-cut Materials
  • Low resistance insert and high rigidity body.
  • Excellent wall accuracy.
  • With through coolant holes to ensure smooth chip discharge.
  • For high-speed machining.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)
EDP Order Number Type Stock qty. Price cart HAND DC LF DCONMS LH KAPR APMX RMPX RPMX CSP CICT ZEFP GAMP GAMF WT
301321 BXD4000R201SA20SA Type 1 Out of Stock Right Hand 20 110 20 35 90 ° 15 28 ° 15000 ◯ 1 1 - - -
250747 BXD4000R201SA20SB Type 1 Out of Stock Right Hand 20 110 20 35 90 ° 15 28 ° 15000 ◯ 1 1 - - -
337965 BXD4000R252SA25LA Type 1 Out of Stock Right Hand 25 170 25 80 90 ° 15 20 ° 38000 ◯ 2 2 - - -
491313 BXD4000R252SA25LB Type 1 Out of Stock Right Hand 25 170 25 80 90 ° 15 20 ° 38000 ◯ 2 2 - - -
256057 BXD4000R252SA25SA Type 1 Out of Stock Right Hand 25 125 25 50 90 ° 15 20 ° 38000 ◯ 2 2 - - -
491321 BXD4000R252SA25SB Type 1 Out of Stock Right Hand 25 125 25 50 90 ° 15 20 ° 38000 ◯ 2 2 - - -
359646 BXD4000R282SA25ELA Type 2 Out of Stock Right Hand 28 220 25 50 90 ° 15 17 ° 35000 ◯ 2 2 - - -
491330 BXD4000R282SA25ELB Type 2 Out of Stock Right Hand 28 220 25 50 90 ° 15 17 ° 35000 ◯ 2 2 - - -
491348 BXD4000R282SA25SA Type 2 Out of Stock Right Hand 28 125 25 50 90 ° 15 17 ° 35000 ◯ 2 2 - - -
491356 BXD4000R282SA25SB Type 2 Out of Stock Right Hand 28 125 25 50 90 ° 15 17 ° 35000 ◯ 2 2 - - -
253500 BXD4000R322SA32LA Type 1 Out of Stock Right Hand 32 200 32 80 90 ° 15 13 ° 33000 ◯ 2 2 - - -
491364 BXD4000R322SA32LB Type 1 Out of Stock Right Hand 32 200 32 80 90 ° 15 13 ° 33000 ◯ 2 2 - - -
243627 BXD4000R322SA32SA Type 1 Out of Stock Right Hand 32 150 32 50 90 ° 15 13 ° 33000 ◯ 2 2 - - -
281560 BXD4000R322SA32SB Type 1 Out of Stock Right Hand 32 150 32 50 90 ° 15 13 ° 33000 ◯ 2 2 - - -
491372 BXD4000R352SA32ELA Type 2 Out of Stock Right Hand 35 250 32 50 90 ° 15 11 ° 31000 ◯ 2 2 - - -
491381 BXD4000R352SA32ELB Type 2 Out of Stock Right Hand 35 250 32 50 90 ° 15 11 ° 31000 ◯ 2 2 - - -
491399 BXD4000R352SA32SA Type 2 Out of Stock Right Hand 35 150 32 50 90 ° 15 11 ° 31000 ◯ 2 2 - - -
491401 BXD4000R352SA32SB Type 2 Out of Stock Right Hand 35 150 32 50 90 ° 15 11 ° 31000 ◯ 2 2 - - -
491410 BXD4000R403SA32ELA Type 2 Out of Stock Right Hand 40 250 32 65 90 ° 15 9 ° 29000 ◯ 3 3 - - -
467567 BXD4000R403SA32ELB Type 2 Out of Stock Right Hand 40 250 32 65 90 ° 15 9 ° 29000 ◯ 3 3 - - -
