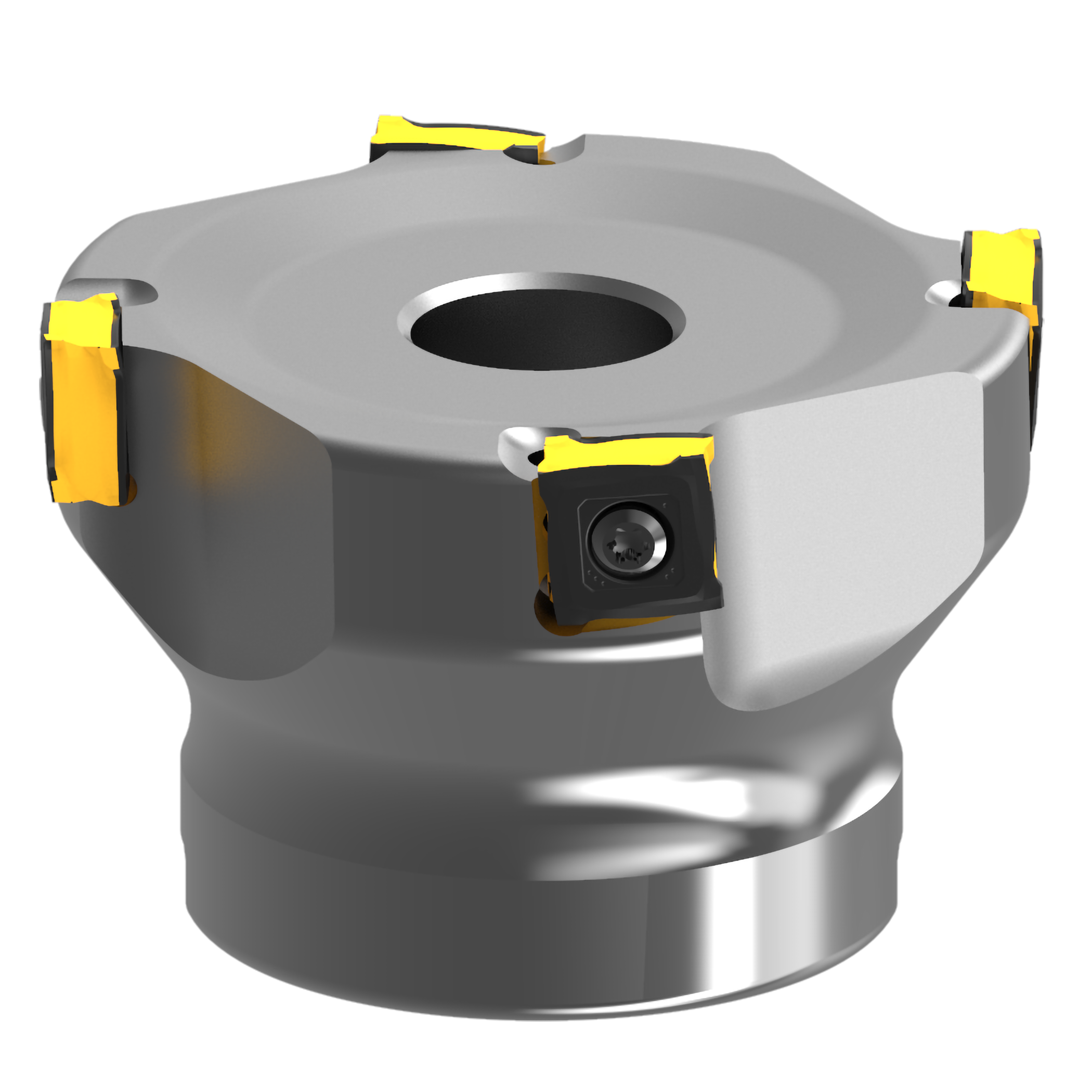

Strong Edge Insert Type Shoulder Milling Cutter for Cast Iron
Tangential inserts with high strength cutting edge.
Economical 8 cutting edge inserts.
Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure

	EDP	Order Number	Type	Stock	qty.	Price	cart	HAND	DC	LF	DCONMS	CBDP	DAH	DCCB	KWW	L8	DHUB	KAPR	APMX	DBC	RPMX	CSP	CICT	ZEFP	GAMP	GAMF	WT
	560876	VOX400R08004C	Type 1		Out of Stock			Right Hand	80	50	25.4	26	13	20	9.5	6	55	90 °	10	-	-	-	4	4	-6 °	-18 °	1 kg
	560884	VOX400R08008C	Type 1		Out of Stock			Right Hand	80	50	25.4	26	13	20	9.5	6	55	90 °	10	-	-	-	8	8	-6 °	-18 °	1 kg
	617107	VOX400R08010C	Type 1		Out of Stock			Right Hand	80	50	25.4	26	13	20	9.5	6	55	90 °	10	-	-	-	10	10	-6 °	-18 °	1 kg
	560892	VOX400R10006D	Type 2		Out of Stock			Right Hand	100	50	31.75	32	-	45	12.7	8	70	90 °	10	-	-	-	6	6	-6 °	-18 °	1.5 kg
	560622	VOX400R10010D	Type 2		Out of Stock			Right Hand	100	50	31.75	32	-	45	12.7	8	70	90 °	10	-	-	-	10	10	-6 °	-18 °	1.5 kg
	617115	VOX400R10012D	Type 2		Out of Stock			Right Hand	100	50	31.75	32	-	45	12.7	8	70	90 °	10	-	-	-	12	12	-6 °	-18 °	1.4 kg
	560905	VOX400R12508E	Type 2		Out of Stock			Right Hand	125	63	38.1	40	-	60	15.9	10	80	90 °	10	-	-	-	8	8	-6 °	-18 °	2.7 kg
	560913	VOX400R12512E	Type 2		Out of Stock			Right Hand	125	63	38.1	40	-	60	15.9	10	80	90 °	10	-	-	-	12	12	-6 °	-18 °	2.7 kg
	617123	VOX400R12516E	Type 2		Out of Stock			Right Hand	125	63	38.1	40	-	60	15.9	10	80	90 °	10	-	-	-	16	16	-6 °	-18 °	2.6 kg
	560921	VOX400R16010F	Type 2		Out of Stock			Right Hand	160	63	50.8	43	-	80	19.1	11	120	90 °	10	-	-	-	10	10	-6 °	-18 °	5.3 kg
	560930	VOX400R16016F	Type 2		Out of Stock			Right Hand	160	63	50.8	43	-	80	19.1	11	120	90 °	10	-	-	-	16	16	-6 °	-18 °	5.3 kg
	617131	VOX400R16020F	Type 2		Out of Stock			Right Hand	160	63	50.8	43	-	80	19.1	11	120	90 °	10	-	-	-	20	20	-6 °	-18 °	5.1 kg
	560948	VOX400R20012K	Type 3		Out of Stock			Right Hand	200	63	47.625	35	18	130	25.4	14.22	175	90 °	10	101.6	-	-	12	12	-6 °	-18 °	8.5 kg
	560956	VOX400R20020K	Type 3		Out of Stock			Right Hand	200	63	47.625	35	18	130	25.4	14.22	175	90 °	10	101.6	-	-	20	20	-6 °	-18 °	8.5 kg
	617140	VOX400R20026K	Type 3		Out of Stock			Right Hand	200	63	47.625	35	18	130	25.4	14.22	175	90 °	10	101.6	-	-	26	26	-6 °	-18 °	8.2 kg
	560964	VOX400R25016K	Type 3		Out of Stock			Right Hand	250	63	47.625	35	18	180	25.4	14.22	220	90 °	10	101.6	-	-	16	16	-6 °	-18 °	13.3 kg
	560972	VOX400R25024K	Type 3		Out of Stock			Right Hand	250	63	47.625	35	18	180	25.4	14.22	220	90 °	10	101.6	-	-	24	24	-6 °	-18 °	13.3 kg
	617158	VOX400R25034K	Type 3		Out of Stock			Right Hand	250	63	47.625	35	18	180	25.4	14.22	220	90 °	10	101.6	-	-	34	34	-6 °	-18 °	13 kg

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.

Tool Material

Ultra Micro Grain Carbide
Ultra micro grain carbide is used as the substrate material

Cubic Boron Nitride
Mitsubishi’s original CBN is used.

Ceramic
Ceramic is used as the substrate material.

High Hardness Powder Metallurgy HSS
High hardness powder metallurgy HSS is used as the substrate material.

Ultra Micro Grain HSS
Cobalt high speed steel is used as the substrate material.

High Speed Steel
High speed steel is used as the substrate material.

Tolerances

Outside Diameter Tolerance
Indicates diameter tolerance of end mill.

R Tolerance Ball
Indicates the radial tolerance of a ball nose end mill.

R Tolerance Radius
Indicates the radial tolerance of an end mill with a corner radius.

Tolerance of Taper Angle
Indicates the tolerance of the taper angle of taper end mill.

Tolerance of Point Angle
Indicates the tolerance of the point angle of end mill.

Shank Diameter Tolerance
Indicates the shank diameter tolerance of end mill.

Angle, Coolant hole, Sharp corner edge and Gash land

Helix Angle
Indicates the helix angle of the end mill.

End Cutting Edge with Coolant Hole

Peripheral Cutting Edge with Coolant Hole

Sharp Corner Edge
Indicates the end mill has a sharp corner edge.

Gash Land
Indicates the end mill cutting edge has a gash land.

Coating

SMART MIRACLE Coating
(Al, Cr)N coaitng optimum for difficult-to-cut materials.

SMART MIRACLE VQT Coating
(Al, Cr)N coating optimum for Ti-alloys.

SMART MIRACLE VQN Coating
(Al, Ti, Si)N coating optimum for Ni-based alloys.

IMPACT MIRACLE REVOLUTION Coating
A coating which adds the excellent high oxidation temperature of (AL, Cr, Si) N-based films to the nano crystal technology of VF.

IMPACT MIRACLE Coating
Single phase nano crystal coating technology for higher film hardness and heat resistance.

MS PLUS Coating
Offers higher versatility for carbon steel, alloy steel and hardened steel.

MS Coating
PVD offers higher versatility.

MIRACLE Coating
The original Miracle (Al, Ti)N coating also suitable for dry cutting of carbon steels and hardened steels.

CRN Coating
Newly developed CrN coating for Copper Electrodes machining.

DLC Coating
Hardness similar to that of CVD diamond coating achieved with high adhesion strength. (Jointly developed with SHINMAYWA INDUSTRIES, LTD.)

CVD Diamond Coated End Mills CFRP
Suitable for CFRP

CVD Diamond Coated End Mills
High performance coating for hard brittle materials excelling in film adhesion to the substrate.

Diamond Coating
Suitable for graphite machining.

VIOLET Coating
The original Miracle (Al, Ti)N coating achieves longer tool life.
