Turning Tools

Turning Holder

Internal Threading

MMTI_INCH

MMTI_INCH （Internal threading）

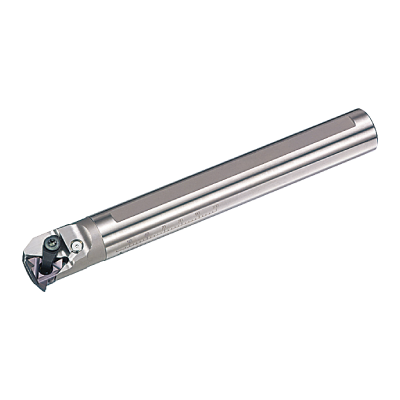

MMTIR244-1.75-1.5-C

MMTIR244-1.75-1.5-C

  • Various insert types.
  • Precision class insert for precise thread forms.
  • Available with a pressed breaker for chip control.
  • Able to change lead angle by replacing the shim.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

EDP No：542109

EAN Code： 4994196562601

ANSI：MMTIR244-1.75-1.5-C

Stock：6 pcs

2D CAD data(DXF) Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained.
HAND
Right Hand
DCONMS
38.1
H
36.5
LF
302
LDRED
61.2
WF
23.3
DMIN
44.5
GAMF
15°
CICT
1
Applicable_Inserts
MMT22IR
Shape EDP Order Number Stock Category Bundled quantity

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
