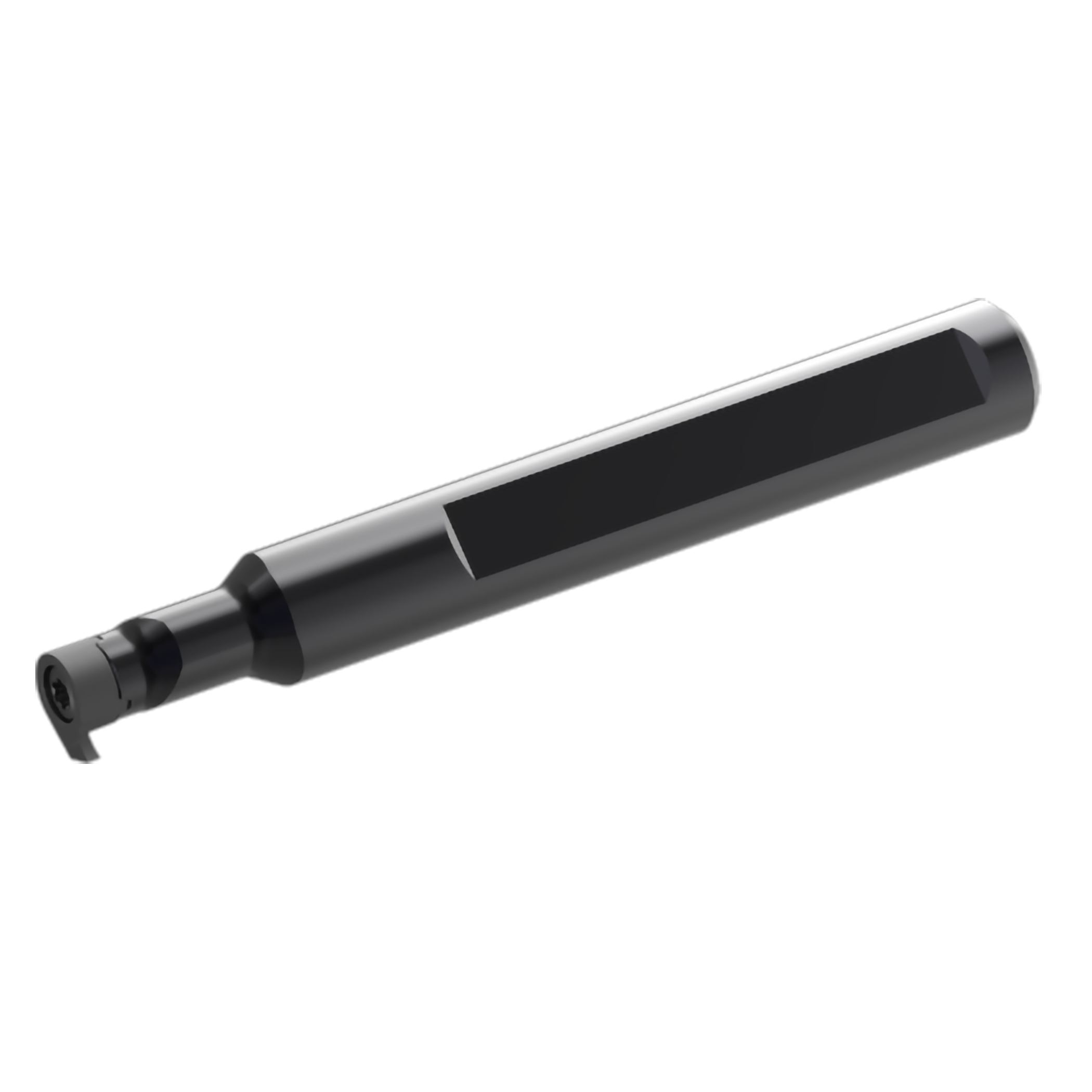

XBSH091000080S - Product - Web Catalog | MITSUBISHI MATERIALS U.S.A

Small Tools
Versatile Range of Applications with One Holder
Machining Threads Instead of Tapping

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：23885097

EAN Code： 4994196905545

ANSI：XBSH091000080S

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)

Product Details

Stock: Inventory maintained in Japan.
HAND: Right Hand
DCONMS: 10
D2: 6.6
D3: 7.4
LDRED: 14
LF: 80
MIID: XBSG09H09100R005R
CICT: 1
Applicable_Inserts: XB〇〇〇〇H09
