S18-16STUPL11-150-C - Product - Web Catalog | MITSUBISHI MATERIALS U.S.A

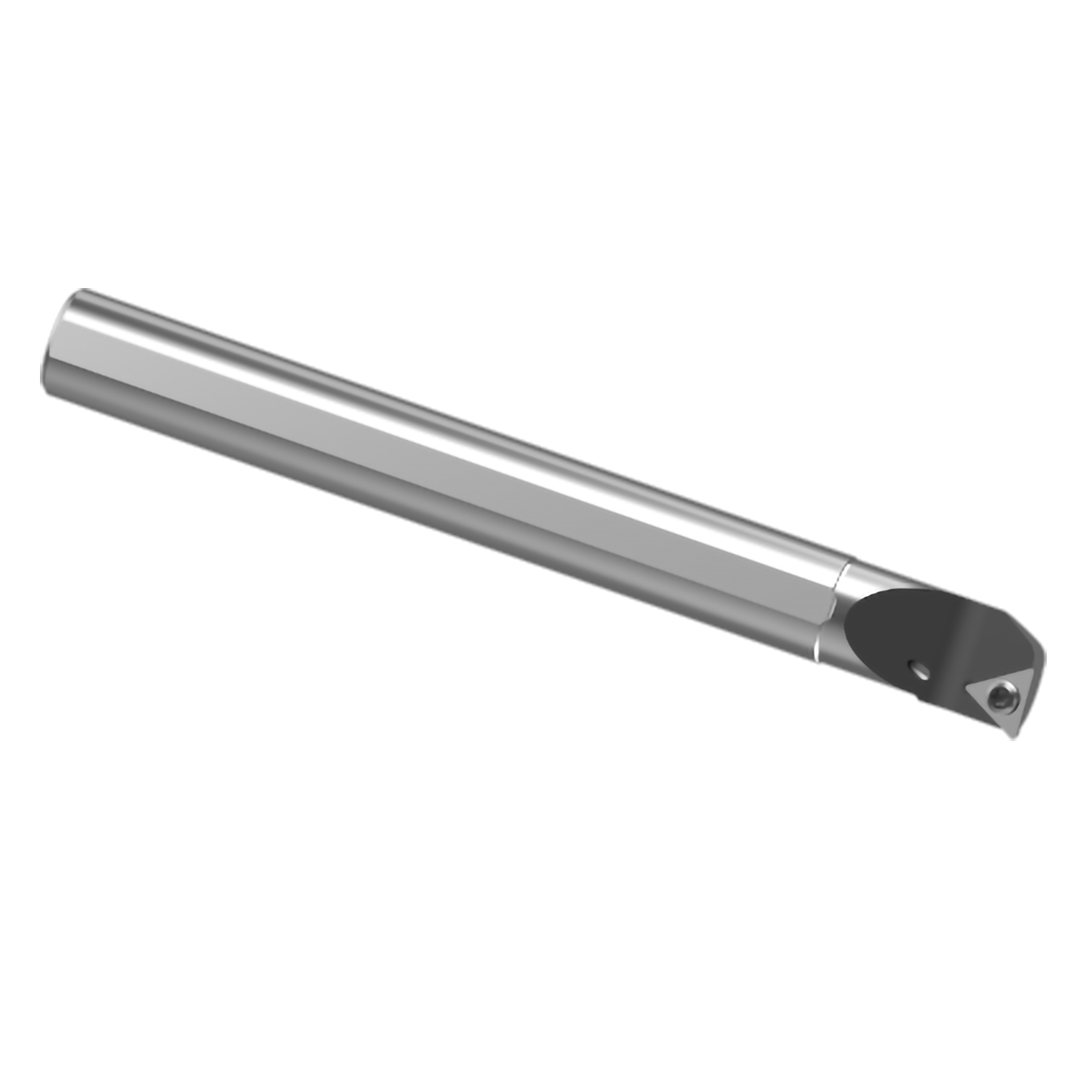

Boring Bars
Steel shank type
Internal coolant support with coolant holes enables stable coolant even during deep hole machining

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：23085268

EAN Code： 4994196833817

ANSI：S18-16STUPL11-150-C

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX)

Product Details

Stock: Inventory maintained.
Hand: Left Hand
KAPR: 93°
DMIN: 18
DCONMS: 16
H: 15
LF: 150
LDRED: 30
WF: 9.2
GAMF: 3.5°
GAMP: 5°
CSP: ◯
MIID: TPMH110304-FV
CICT: 1
Applicable_Inserts: TP〇H1103〇〇,TP〇X1103〇〇,TPGV1103〇〇
