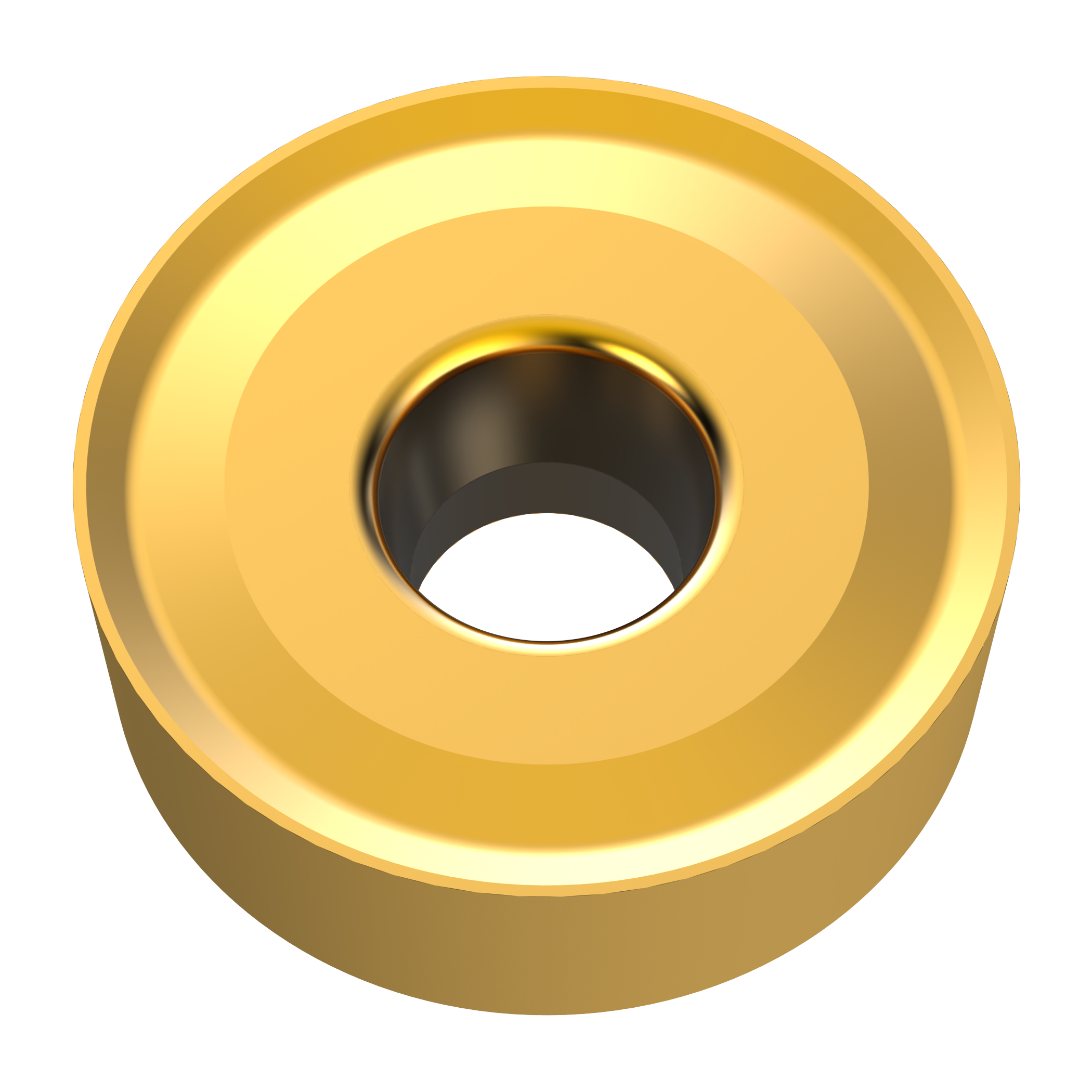

RCMX1606M0 MC6125(EDP:23077539) - Product - Web Catalog

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：10

EDP No：23077539

EAN Code： 4994196832162

ANSI：RCMX1606M0

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed

Product Details

Stock: Inventory maintained in Japan.
Tool_Material: CVD Carbide
Grade: MC6125
HAND: Neutral
D1: 5.2
IC: 16
S: 6.35
AN: 7°
CBMD_catalog: Standard

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
