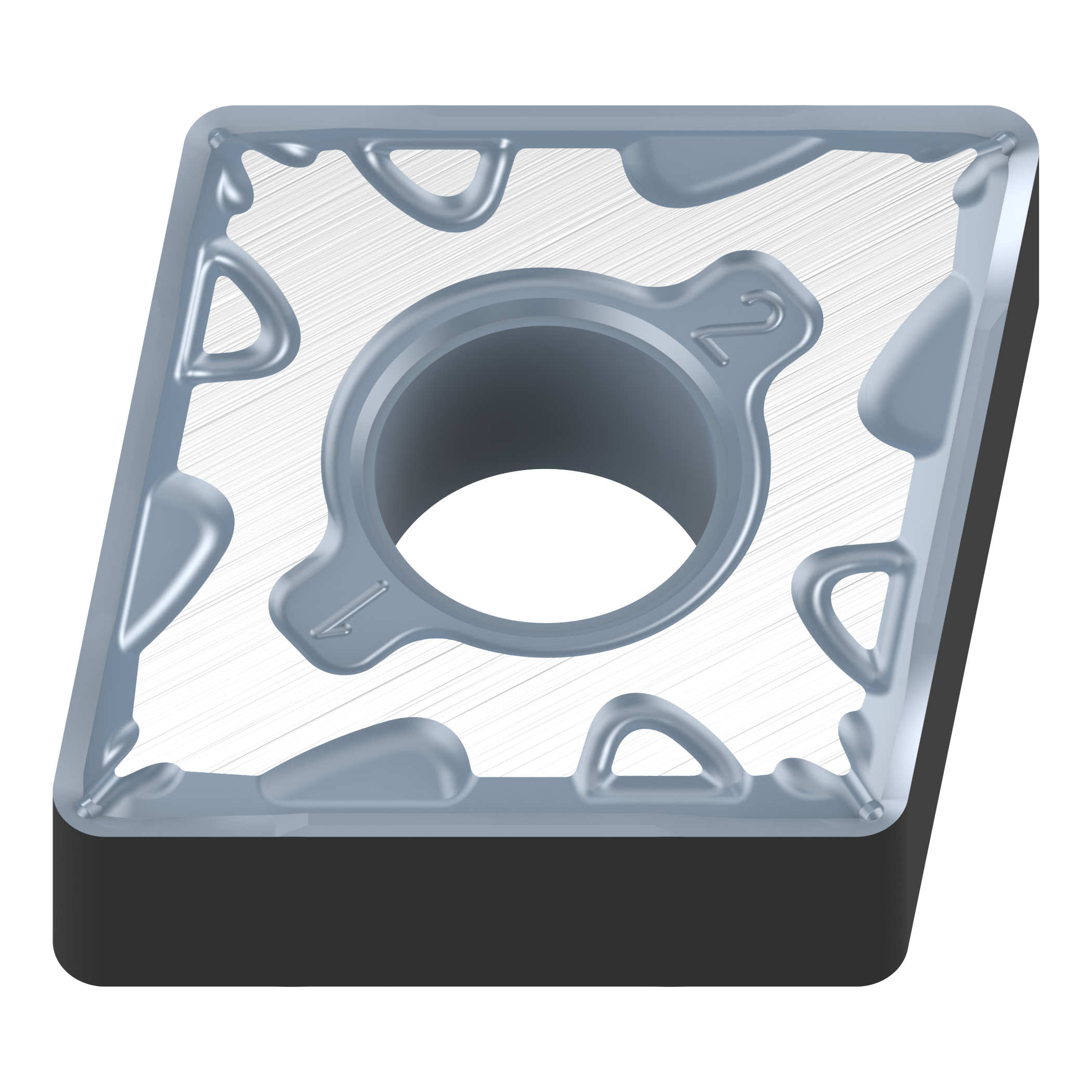

CNMG431FP NX2525 - Product - Web Catalog | MITSUBISHI MATERIALS U.S.A

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：10

EDP No：10575581

EAN Code： 4994196730789

ANSI：CNMG431FP

ISO：CNMG120404-FP

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed

Product Details

Stock: Inventory maintained in Japan.
Tool_Material: Cermet
Grade: NX2525
HAND: Neutral
CNC: 4
D1: 5.16
IC: 12.7
S: 4.76
RE: 0.4
EPSR: 80°
AN: 0
CBMD_catalog: FP
