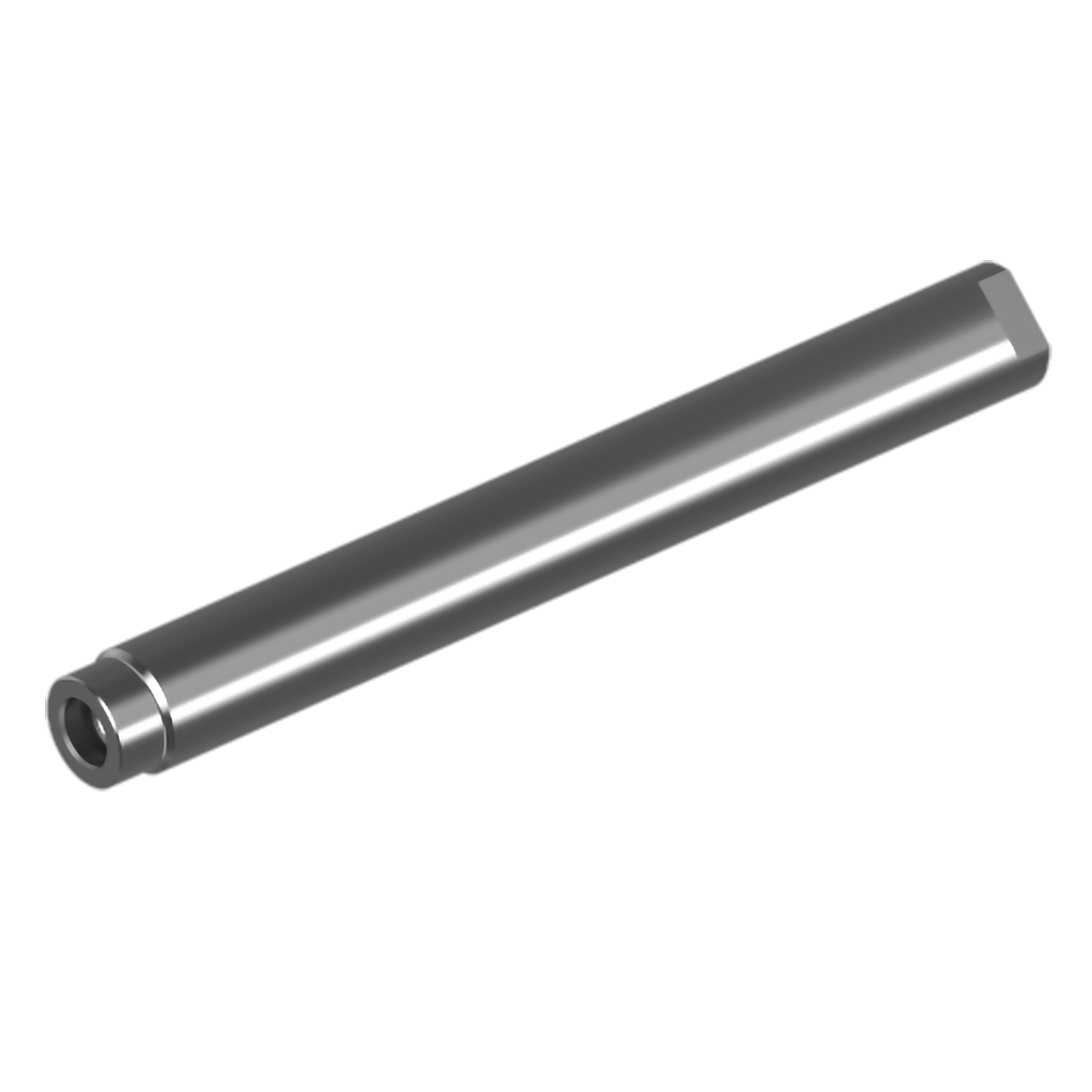

Straight Steel Shank Arbor

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

List Price： Sign in to check price

Quantity：1

EDP No：10533314

EAN Code： 4994196696658

ANSI：SCU20M16S280L

Stock：15 pcs

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed Product List(XLSX)

Product Details

Stock: Inventory maintained.
CSP: ◯
DCONWS: 17
DCONMS: 31.75
BD: 28.5
LF: 280
LB: 15
CRKS: M16
