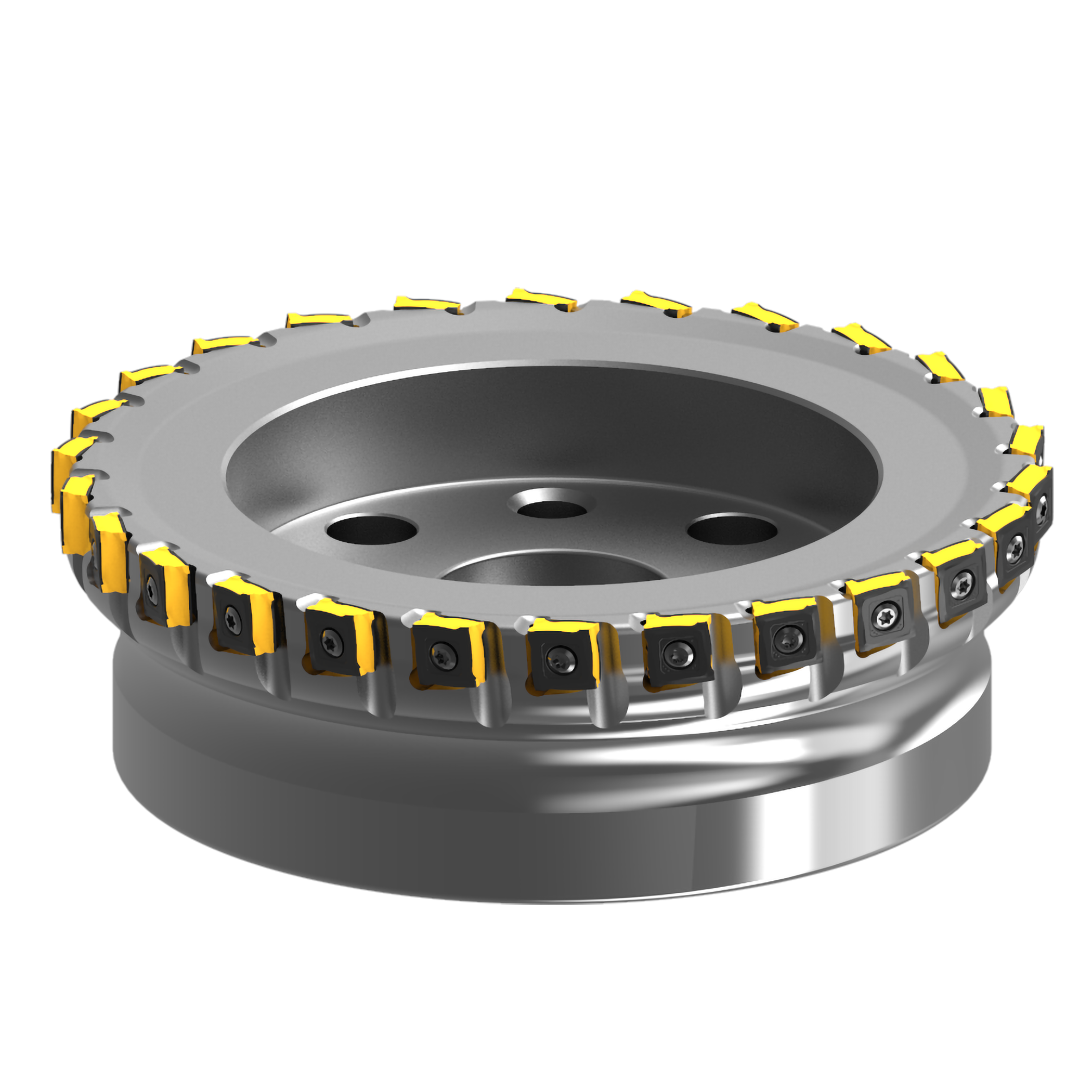

Strong Edge Insert Type Shoulder Milling Cutter for Cast Iron
Tangential inserts with high strength cutting edge.
Economical 8 cutting edge inserts.
Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：617140

EAN Code： 4994196605087

ANSI：VOX400R20026K

Stock：Out of Stock

Create Tooling Sheet

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details

Stock: Inventory maintained in Japan.
HAND: Right Hand
DC: 200
LF: 63
DCONMS: 47.625
CBDP: 35
DAH: 18
DCCB: 130
KWW: 25.4
L8: 14.22
DHUB: 175
KAPR: 90°
APMX: 10
DBC: 101.6
CSP: -
CICT: 26
ZEFP: 26
GAMP: -6°
GAMF: -18°
WT: 8.2 kg
