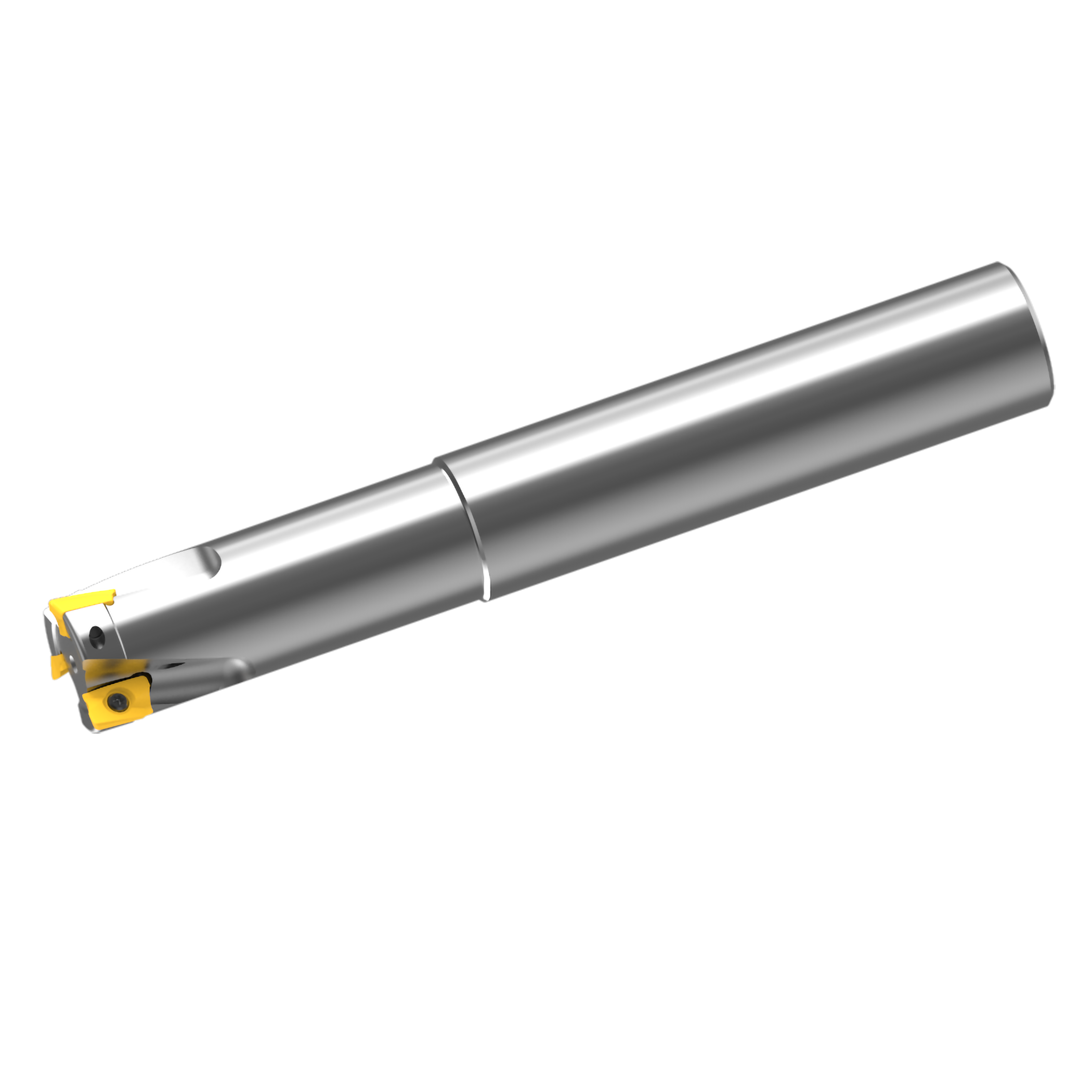

APX3000R253SA25LA

APX3000R253SA25LA

  • Multi-functional Indexable Shoulder Milling Cutter
  • Low cutting force insert.
  • High accuracy, high quality vertical wall.
  • With through air & coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：490695

EAN Code： 4994196455484

ANSI：APX3000R253SA25LA

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
25
OAL
170
DCONMS
25
LH
70
APMX
10
KAPR
90°
RMPX
4.6°
RPMX
16400
CSP
◯
CICT
3
ZEFP
3
GAMP
18°
GAMF
24°
WT
0.57 kg
