APX3000

APX3000_Shank_MM （Multi Functional Milling）

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/L_Milling_KAPR_90_r.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_3_Milling_Accuracy_roughing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_20_Milling_Application_Slot%2520milling.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_25_Milling_Application_Ramping.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_90_Helical%2520Drilling.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_15_Milling_Application_Face%2520milling.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_10_Milling_Application_Shoulder%2520milling_1.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_30_Milling_Application_Pocket%2520milling.svg
P M K N S H

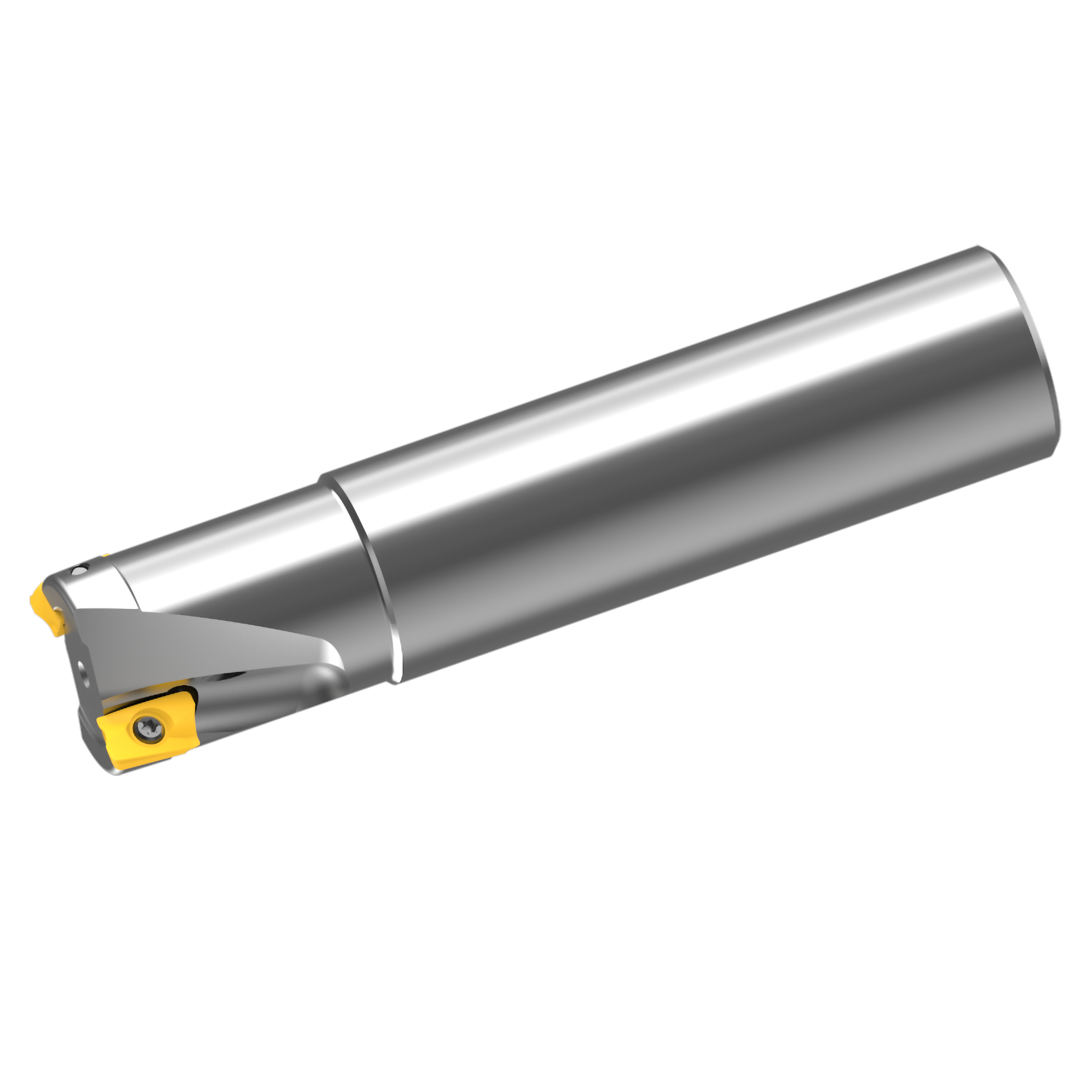

APX3000R252SA25SA

APX3000R252SA25SA

  • Multi-functional Indexable Shoulder Milling Cutter
  • Low cutting force insert.
  • High accuracy, high quality vertical wall.
  • With through air & coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：458100

EAN Code： 4994196370541

ANSI：APX3000R252SA25SA

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
25
OAL
115
DCONMS
25
LH
35
APMX
10
KAPR
90°
RMPX
4.6°
RPMX
16400
CSP
◯
CICT
2
ZEFP
2
GAMP
18°
GAMF
24°
WT
0.38 kg
