APX3000R223SA20SA

APX3000R223SA20SA

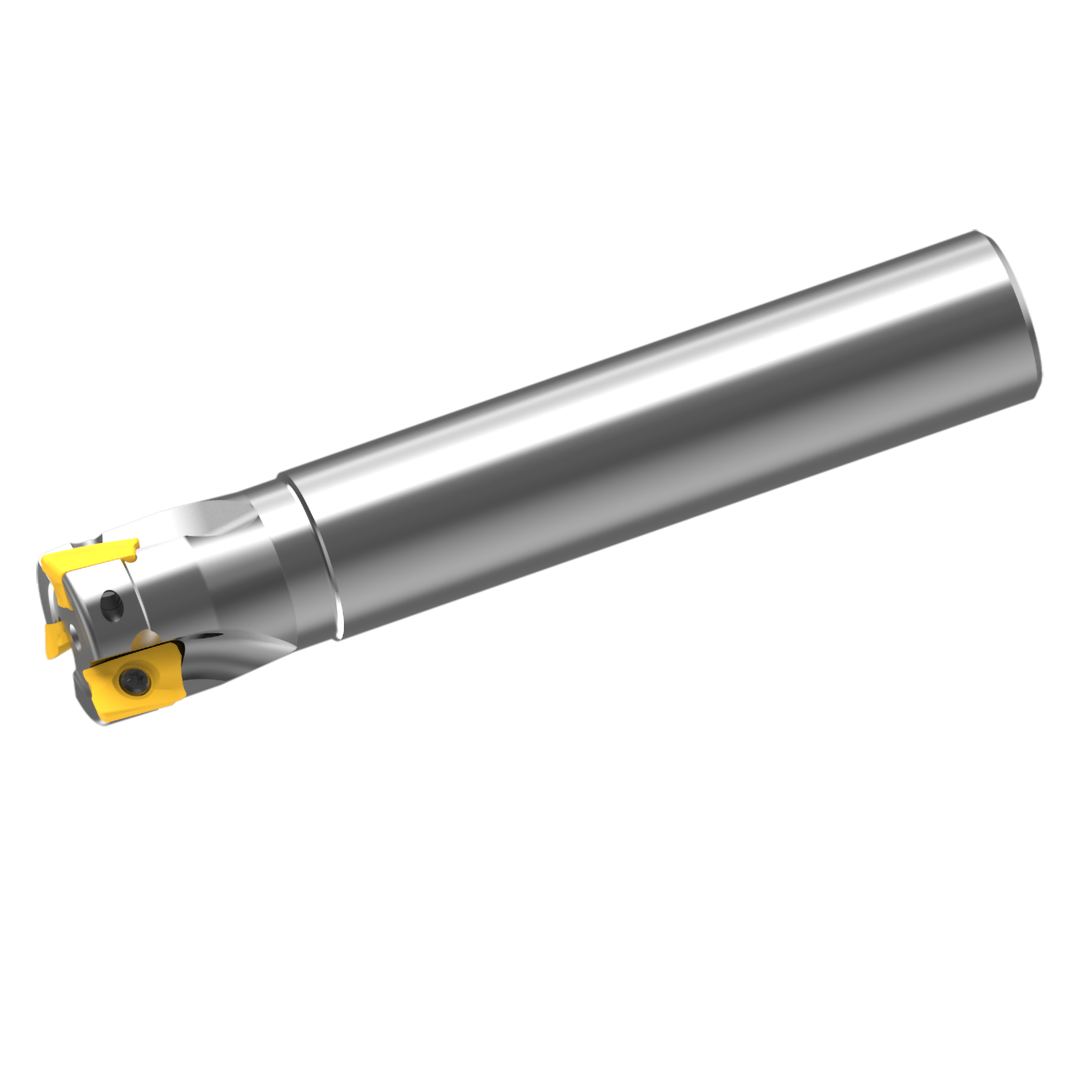

  • Multi-functional Indexable Shoulder Milling Cutter
  • Low cutting force insert.
  • High accuracy, high quality vertical wall.
  • With through air & coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：339856

EAN Code： 4994196370534

ANSI：APX3000R223SA20SA

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
22
OAL
115
DCONMS
20
LH
30
APMX
10
KAPR
90°
RMPX
5.7°
RPMX
17600
CSP
◯
CICT
3
ZEFP
3
GAMP
17°
GAMF
23°
WT
0.25 kg
