Ball Nose and Radius End Mill

SRM2_40-50

SRM2_50-40_Shank_MM （Ball Nose End Milling）

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/L_Milling_KAPR_R_r.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_3_Milling_Accuracy_roughing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_70_Milling_Accuracy_3D%2520milling.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_60_Milling_Application_Slot_Milling_%252BR.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_55_Milling_Application_Corner_Radius.svg
P K

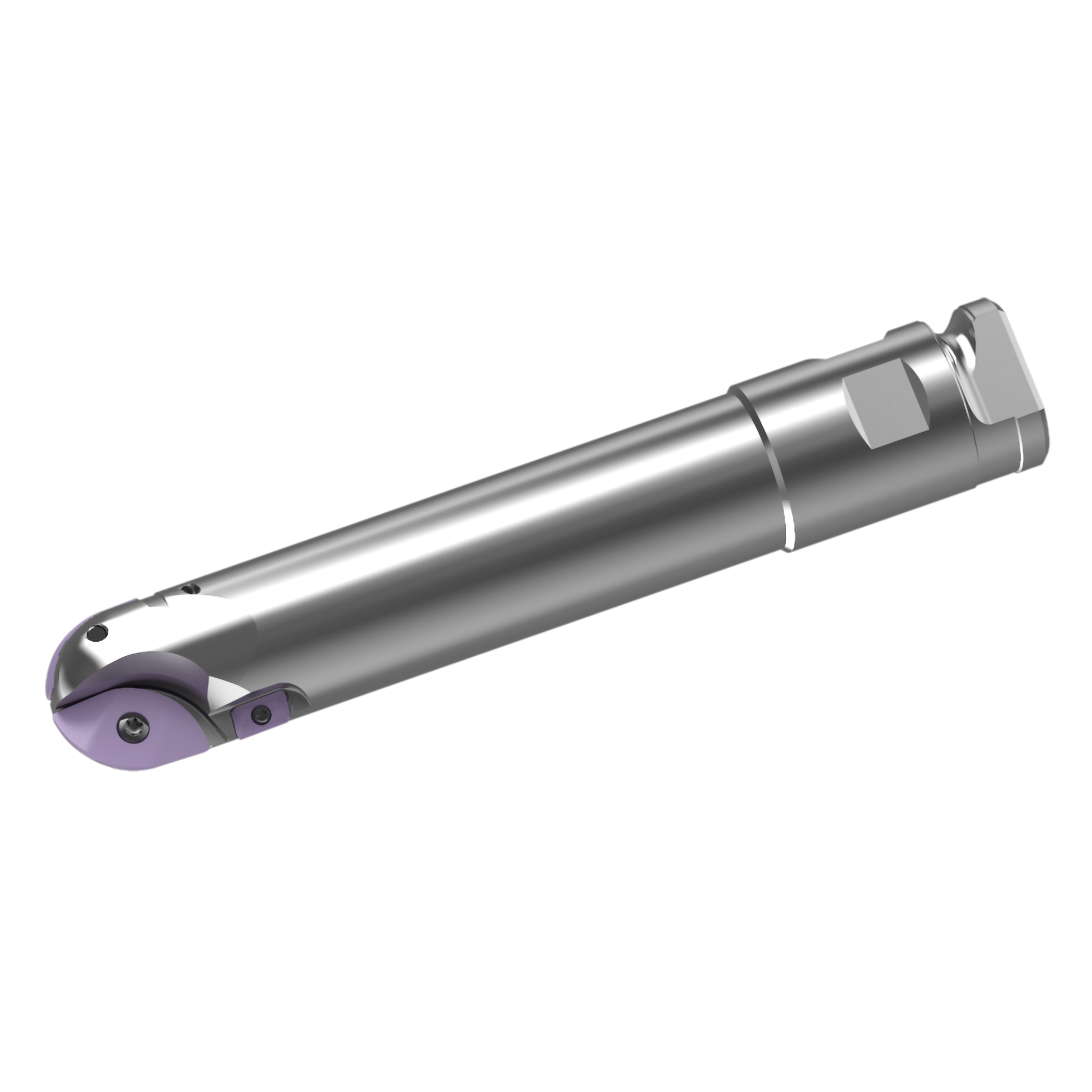

SRM2500WNLL

SRM2500WNLL

  • Indexable Insert Ball Nose End Mill
  • Best for roughing of moulds.
  • Low resistance chipbreaker.
  • Highly rigid body.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：389466

EAN Code： 4994196339890

ANSI：SRM2500WNLL

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
50
OAL
300
DCONMS
50.8
LH
220
APMX
63
CSP
-
CICT
4
ZEFP
1
ZEFF
2
