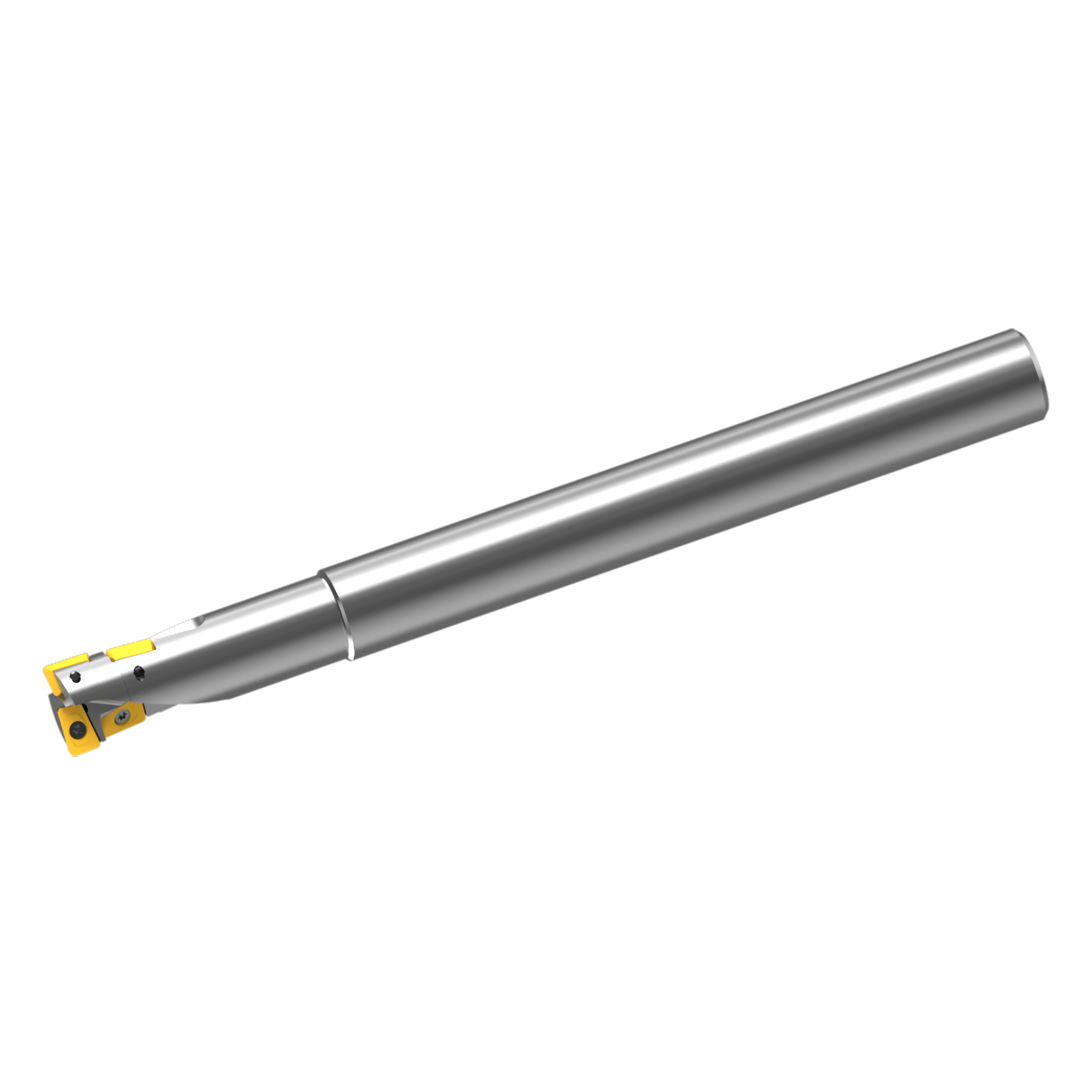

AQXR164SN16L

AQXR164SN16L

  • Multi-functional Indexable End Mill
  • The centre bottom cutting edge enables drilling without previously formed hole.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：259661

EAN Code： 4994196332136

ANSI：AQXR164SN16L

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
16
OAL
175
DCONMS
16
LH
50
B2
3.5°
KAPR
90°
APMX
17.6
A3
4.5
CSP
-
CICT
4
ZEFP
1
ZEFF
1
Shape EDP Order Number Stock Category Bundled quantity
