AQXR254SN25S

AQXR254SN25S

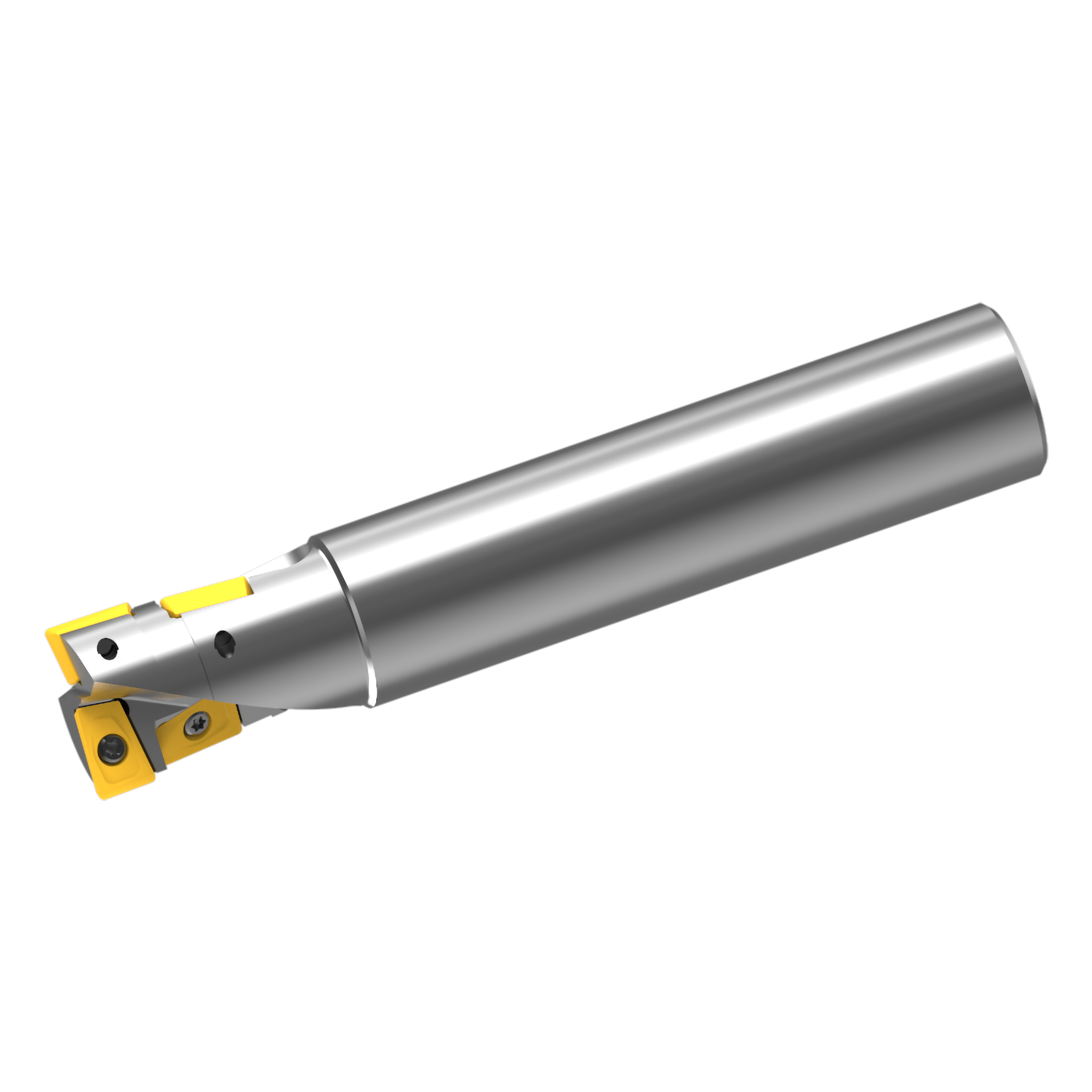

  • Multi-functional Indexable End Mill
  • The centre bottom cutting edge enables drilling without previously formed hole.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：347012

EAN Code： 4994196274207

ANSI：AQXR254SN25S

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
25
OAL
140
DCONMS
25
LH
40
B2
3.5°
KAPR
90°
APMX
27.5
A3
7.5
CSP
-
CICT
4
ZEFP
1
ZEFF
1
