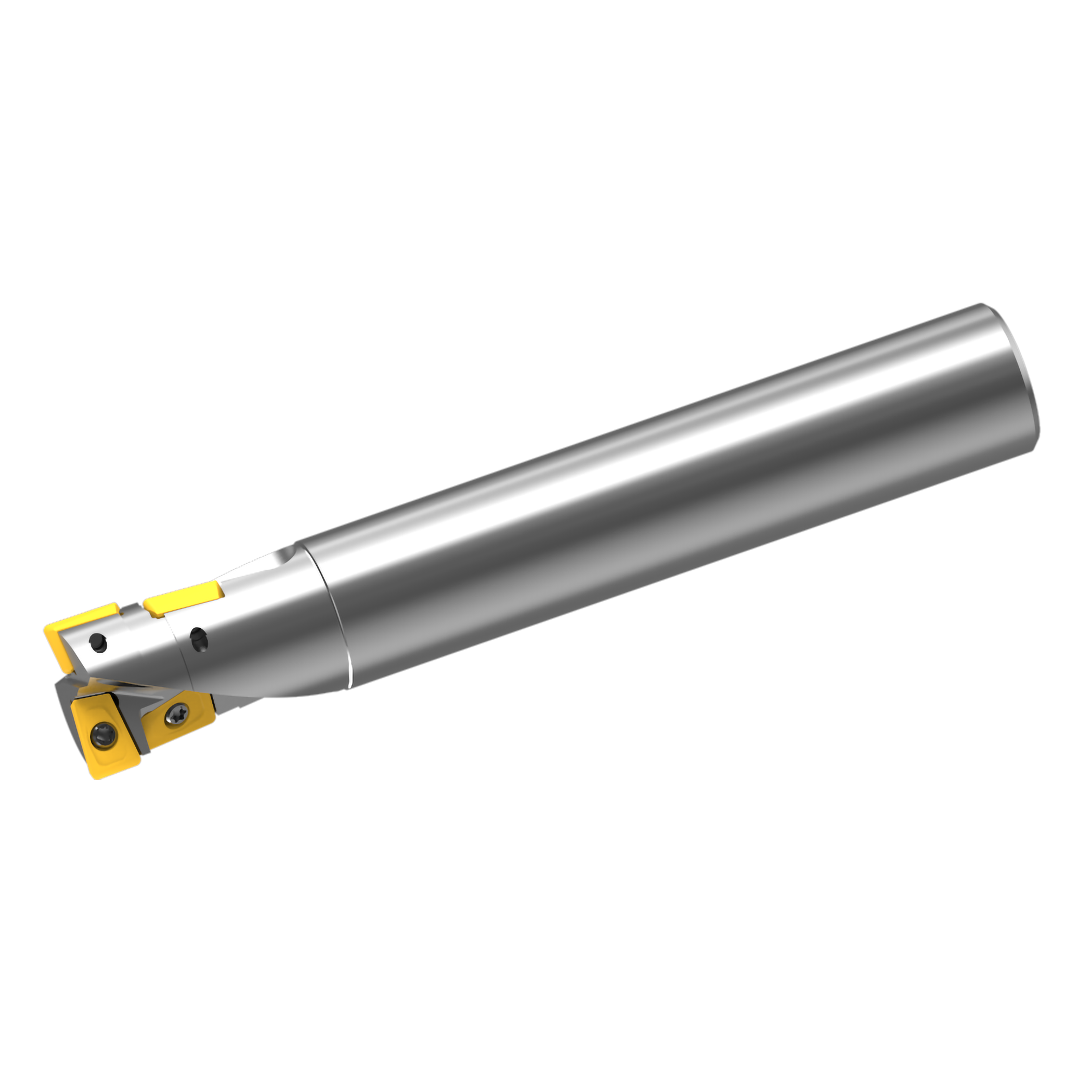

AQXR214SA20S

AQXR214SA20S

  • Multi-functional Indexable End Mill
  • The centre bottom cutting edge enables drilling without previously formed hole.
  • With through coolant holes.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：259101

EAN Code： 4994196273835

ANSI：AQXR214SA20S

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
21
OAL
130
DCONMS
20
LH
35
B2
3.5°
KAPR
90°
APMX
22
A3
6
CSP
◯
CICT
4
ZEFP
1
ZEFF
1
Shape EDP Order Number Stock Category Bundled quantity

Stock:

:Inventory maintained.

:Non stock, produced to order only.

:Inventory maintained. To be replaced by new products.

:Inventory maintained in Japan.
