Rotating Tools

Indexable Milling

Shoulder Milling

VOX400

VOX400_Arbor_MI （Cast Iron）

/packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/L_Milling_KAPR_90_r.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/N_3_Milling_Accuracy_roughing.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_10_Milling_Application_Shoulder%2520milling_1.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_15_Milling_Application_Face%2520milling.svg /packages/mmc_web_catalog/themes/mmc_web_catalog/icons/product_pim_icon/O_18_Milling_Application_Face_milling_near_the_Wall.svg
K

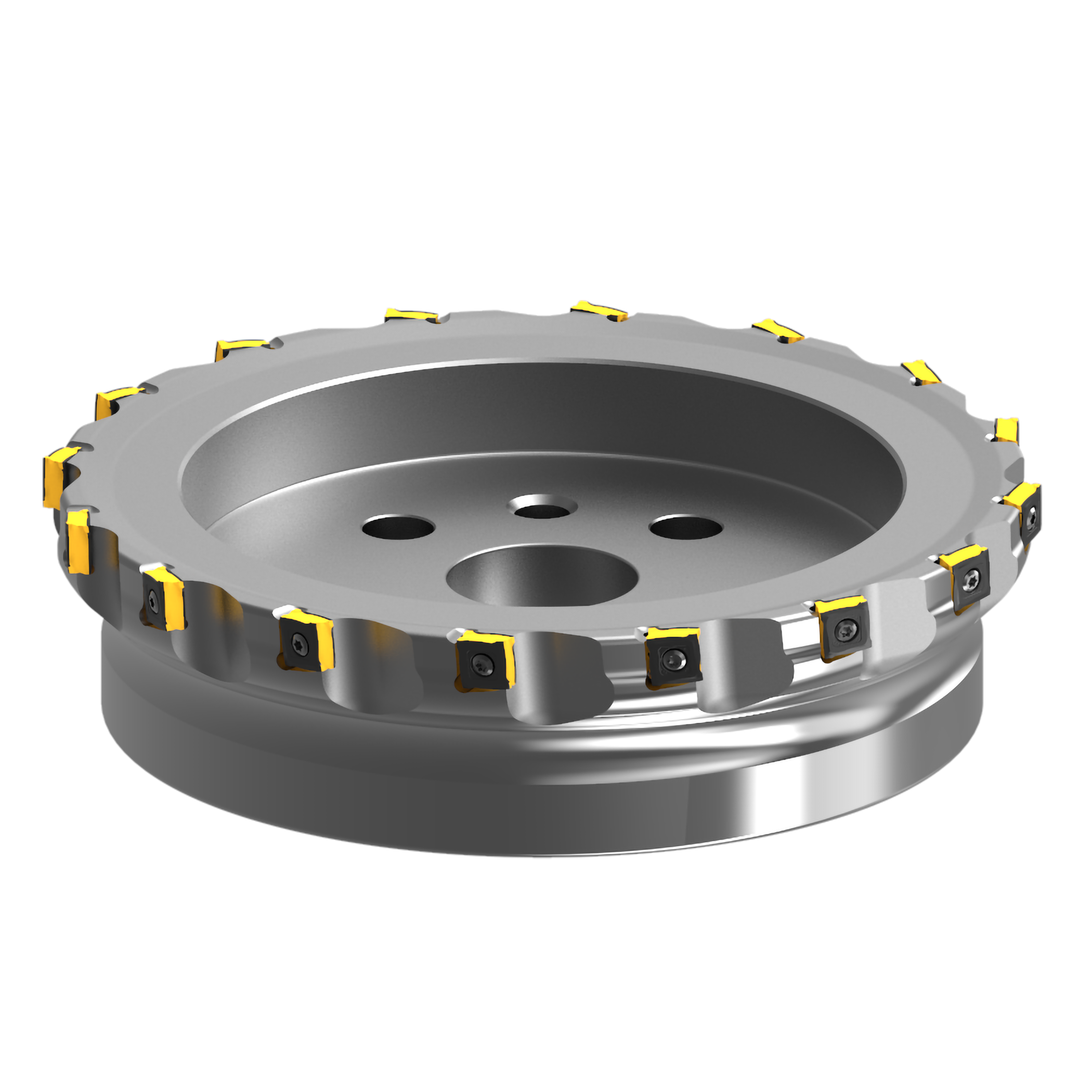

VOX400R25016K

VOX400R25016K

  • Strong Edge Insert Type Shoulder Milling Cutter for Cast Iron
  • Tangential inserts with high strength cutting edge.
  • Economical 8 cutting edge inserts.
  • Screw-on type.

※Actual products and images (representative examples) may differ. Please check the dimensions column in the table below for details.

Quantity：1

EDP No：560964

EAN Code： 4994196575571

ANSI：VOX400R25016K

Stock：Out of Stock

2D CAD data(DXF) 3D CAD data(STP)Detailed 3D CAD data(STP,STL)Simplified Product List(XLSX) Product Brochure Recommended cutting conditions

Product Details
Stock
Inventory maintained in Japan.
HAND
Right Hand
DC
250
LF
63
DCONMS
47.625
CBDP
35
DAH
18
DCCB
180
KWW
25.4
L8
14.22
DHUB
220
KAPR
90°
APMX
10
DBC
101.6
CSP
-
CICT
16
ZEFP
16
GAMP
-6°
GAMF
-18°
WT
13.3 kg
